eMOB I-500.1 DC

eMOB I-500.1 DC

$0.00
$0.00
Sale Sold out

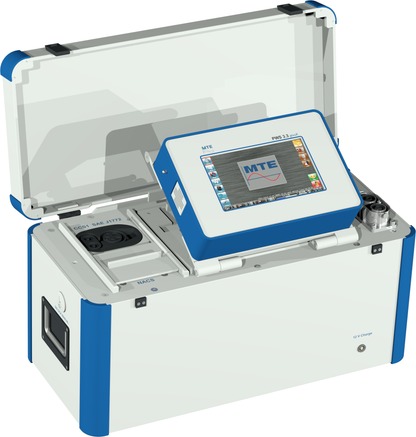

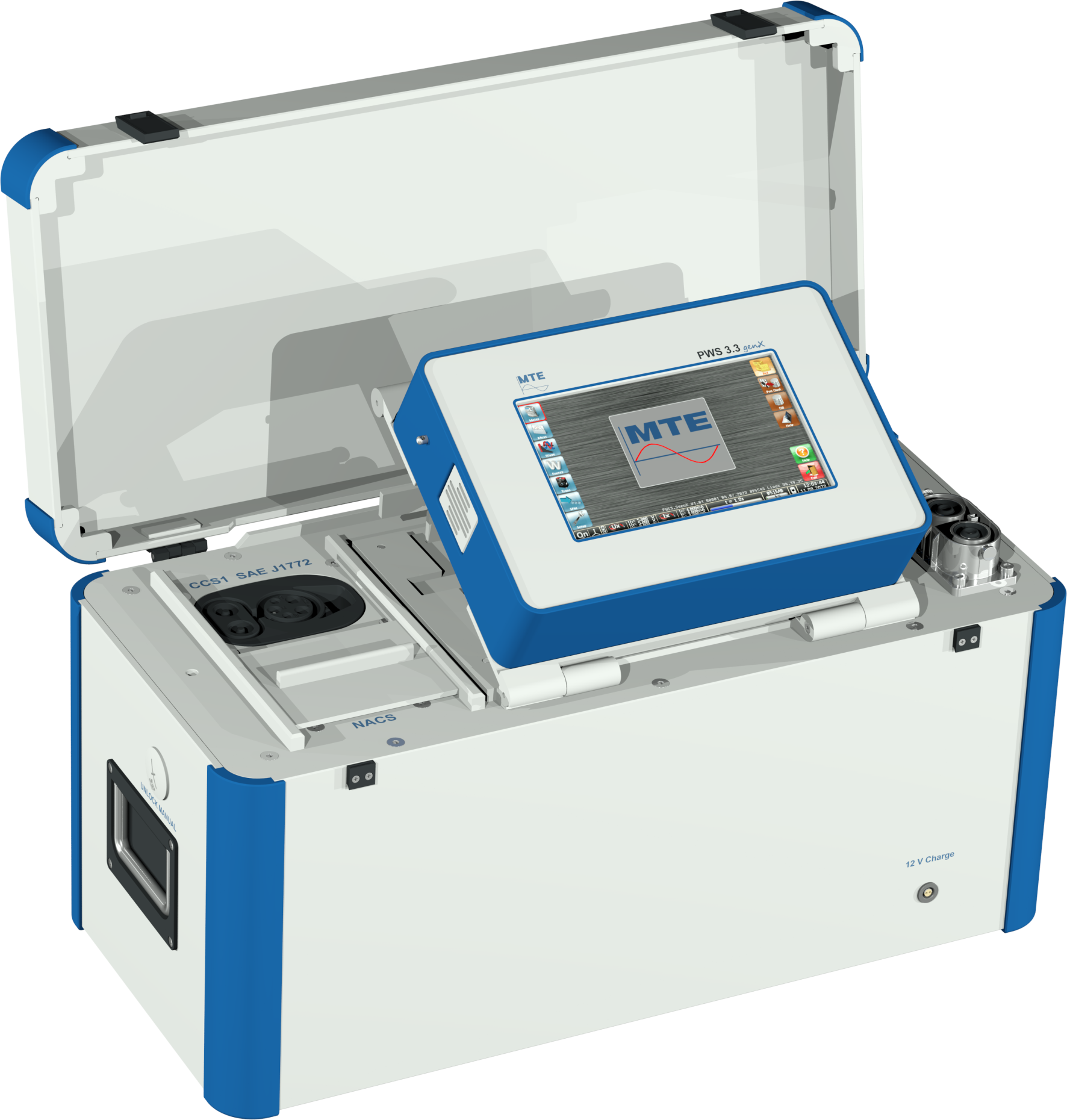

The new eMOB I-500.1 AC/DC test adapter, in combination with the Portable Working Standard PWS 3.3 genX, is the ideal tool to perform a calibration of EVSE DC up to 500 A, 1000 V and single-phase EVSE AC, up to 80 A, 300 V in accuracy class 0.1.

Product Detail
View full details

Technical Details

Housing:

Hard Plastic
Dimensions:

L 25.67 x W 11.89 x H 12.52 inch
Weight:

x.x lbs
Operation temperature:

-10 °C to+50 °C
Storage temperature:

20 °C to +60 °C
Relative humidity:

≤ 85% at Ta ≤ 21°C

≤ 95% at Ta ≤ 25°C, 30 days / year spread
Connection EVSE side:

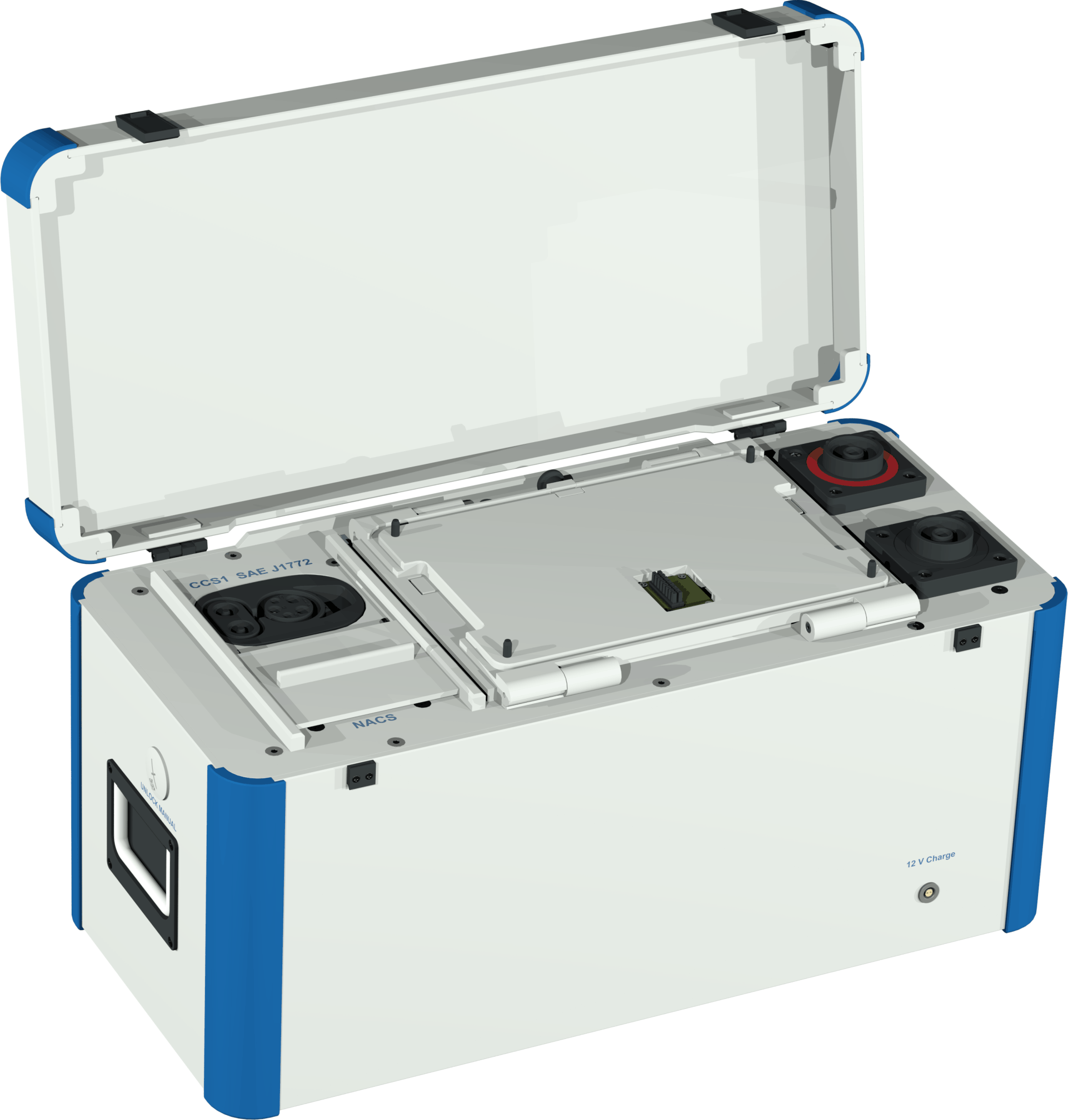

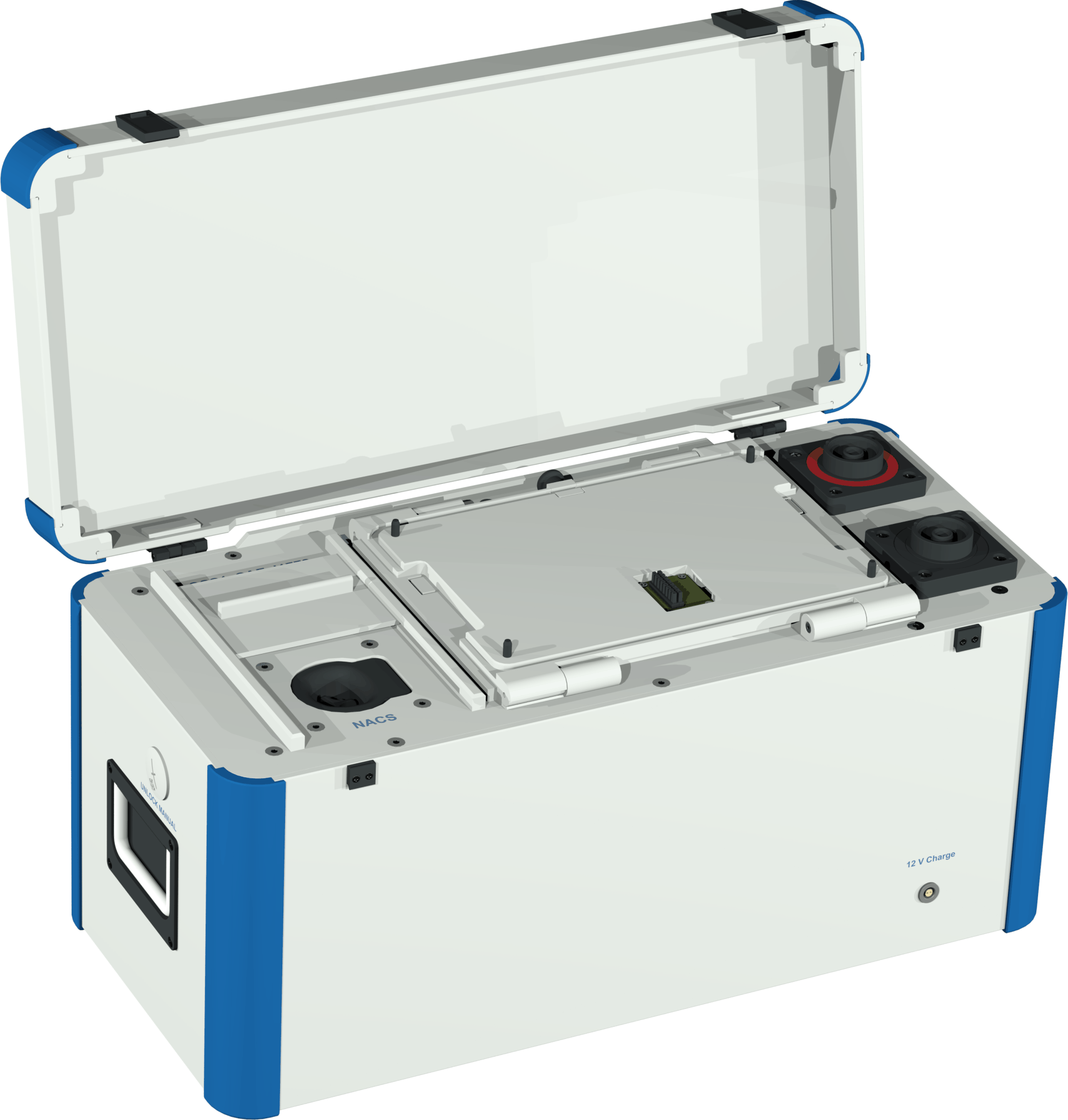

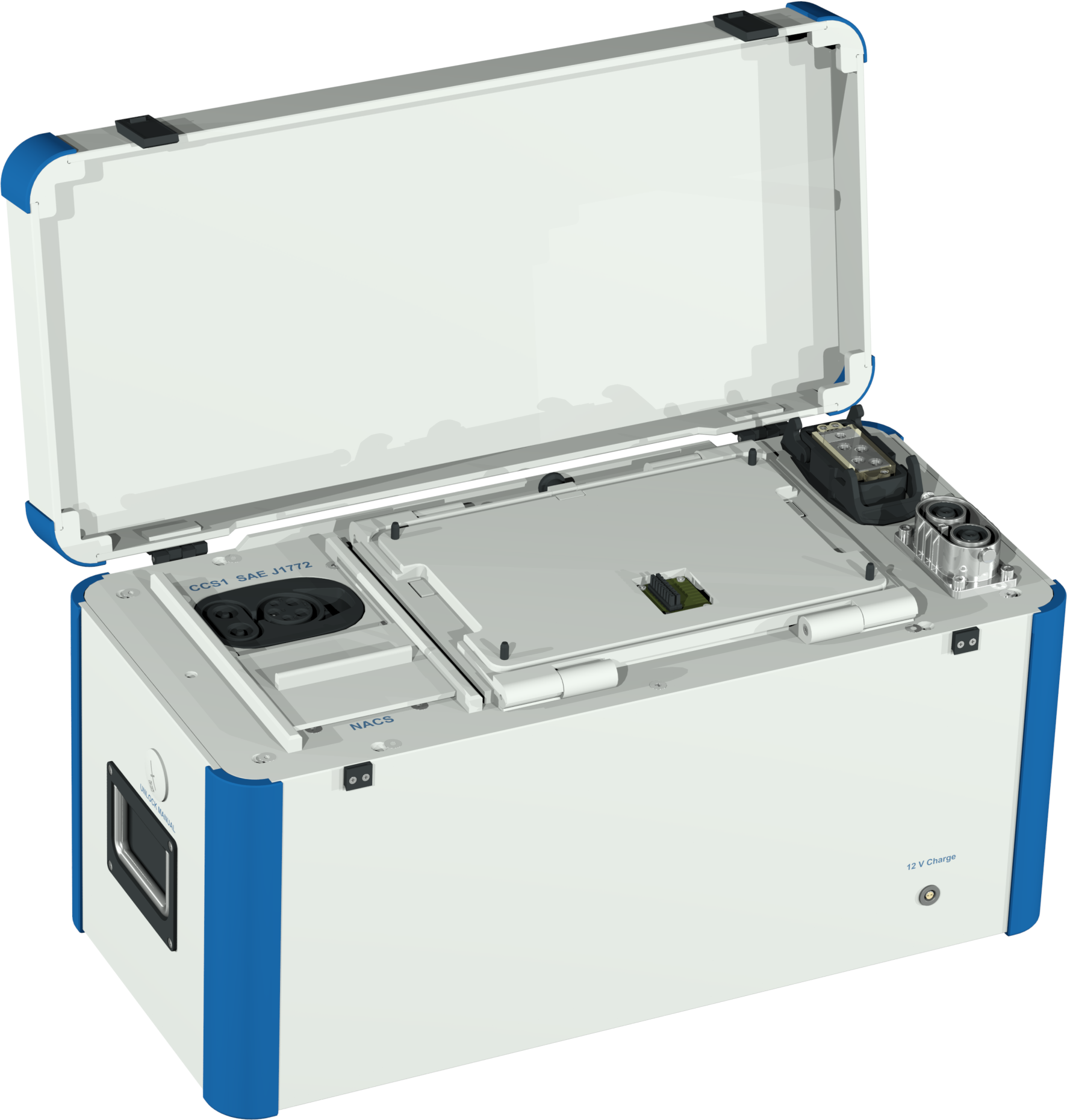

Selectable connectors for:
DC charging: NACS North American
Charging Standard (SAE J4300) or
CCS1 Combined Charging System Type 1
(IEC 62196)
AC charging: NACS or Ty
Connection EV, Load side:

DC+, DC- connectors and common connector for AC and control signals for connection of different charging cables to connect to EV with NACS, CCS1 or Type 1
(J1772) connector or to a load instead to an
EV.
