HYDROCAL 1001+

HYDROCAL 1001+

$0.00
$0.00
Sale Sold out

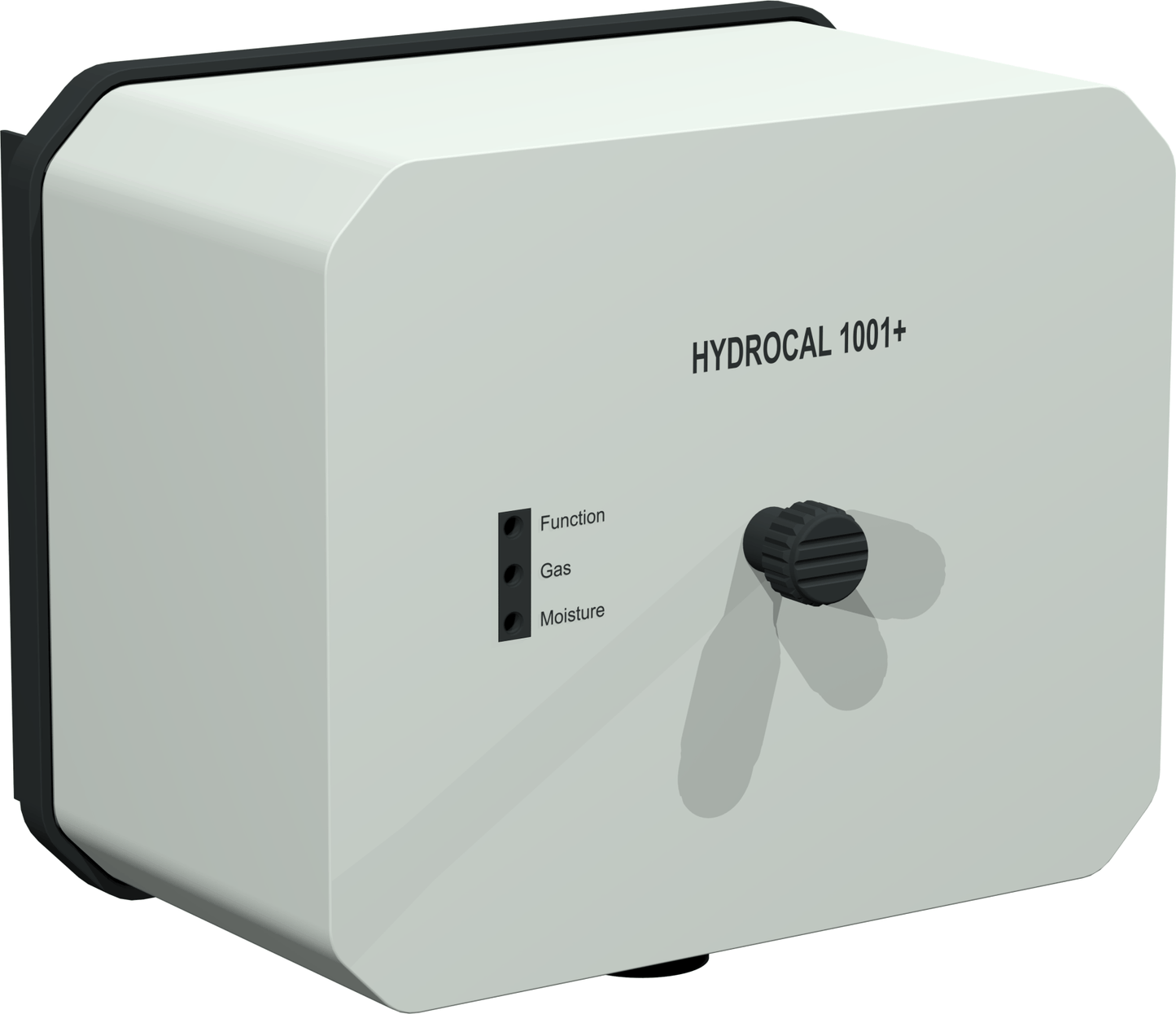

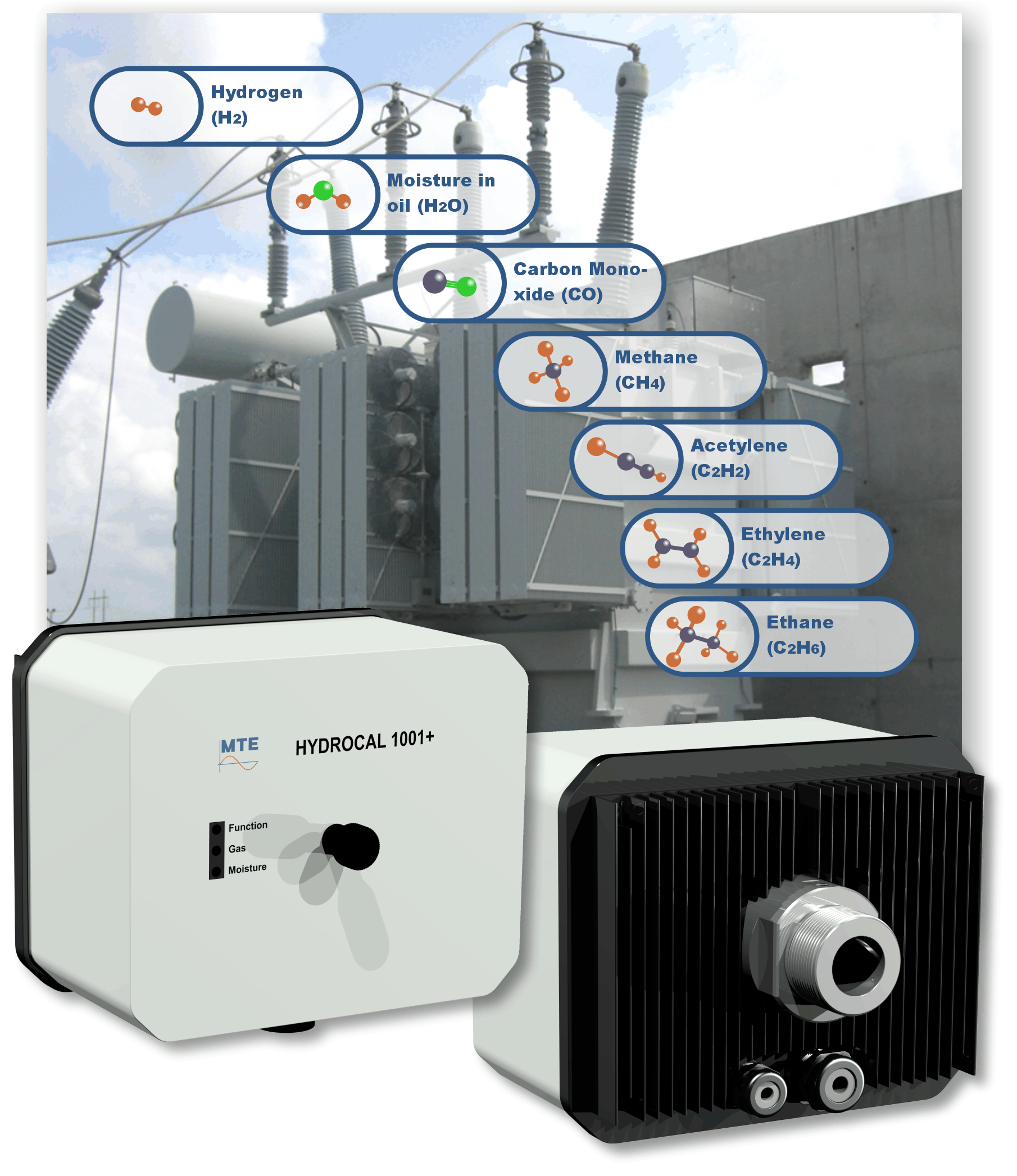

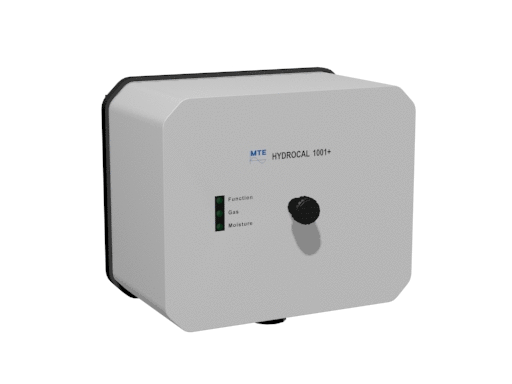

The HYDROCAL 1001+ is a permanently-installed composite gas-in-oil sensor for the analysis of six dissolved key fault gases such as Hydrogen (H2), Carbon Monoxide (CO), Methane (CH4), Acethylene (C2H2), Ethylene (C2H4), and Ethane (C2H6). To detect an even wider range of potential transformer faults, the HYDROCAL 1001+ additionally analyzes the content of moisture (H20) in transformer oil.

Product Overview
View full details

Technical Details

Auxiliary power supply:

120 V -20% +15% AC 50/60 Hzor
230 V -20% +15% AC 50/60 Hzor
120 V -20% +15% DCor
230 V -20% +15% DCOther nominal voltages on request!
Power consumption:

max. 250 VA
Housing:

Aluminium
Dimensions:

8.81" (wide), 7.67" (height), 11.06" (deep)
Weight:

Approx. 8.81 lbs
Operation temperature:

-55 °C (-67 °F) to +55 °C (131 °F)
Storage temperature:

-20 °C (-4 °F) to +65 °C (149 °F)
Oil temperature:

-20 °C (-4 °F) to +90 °C (194 °F)
(inside transformer)
Oil Pressure:

up to 800 kpa
(NO negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1
or
1½" NPT ANSI B 1.20.1
