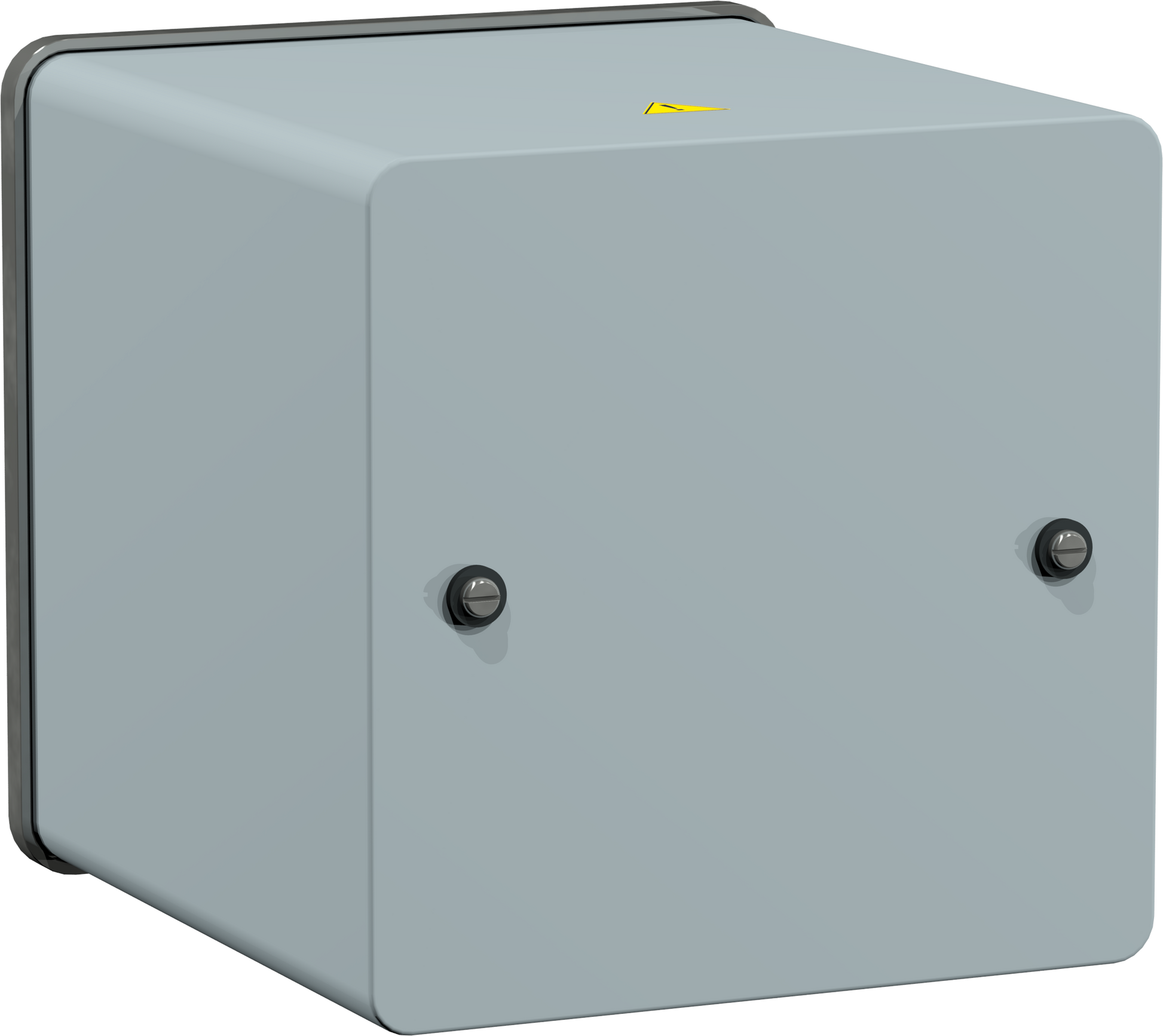

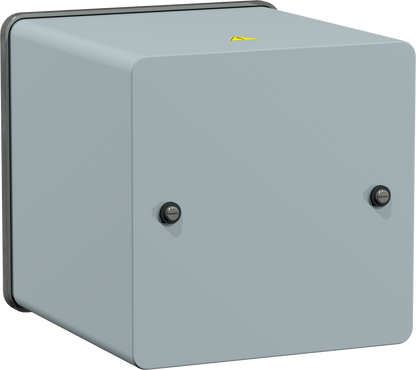

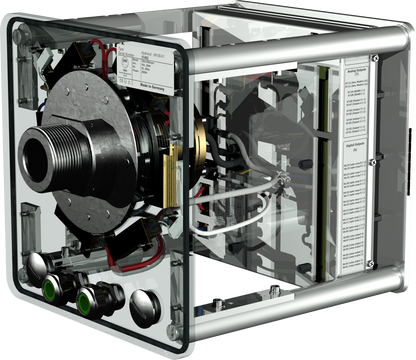

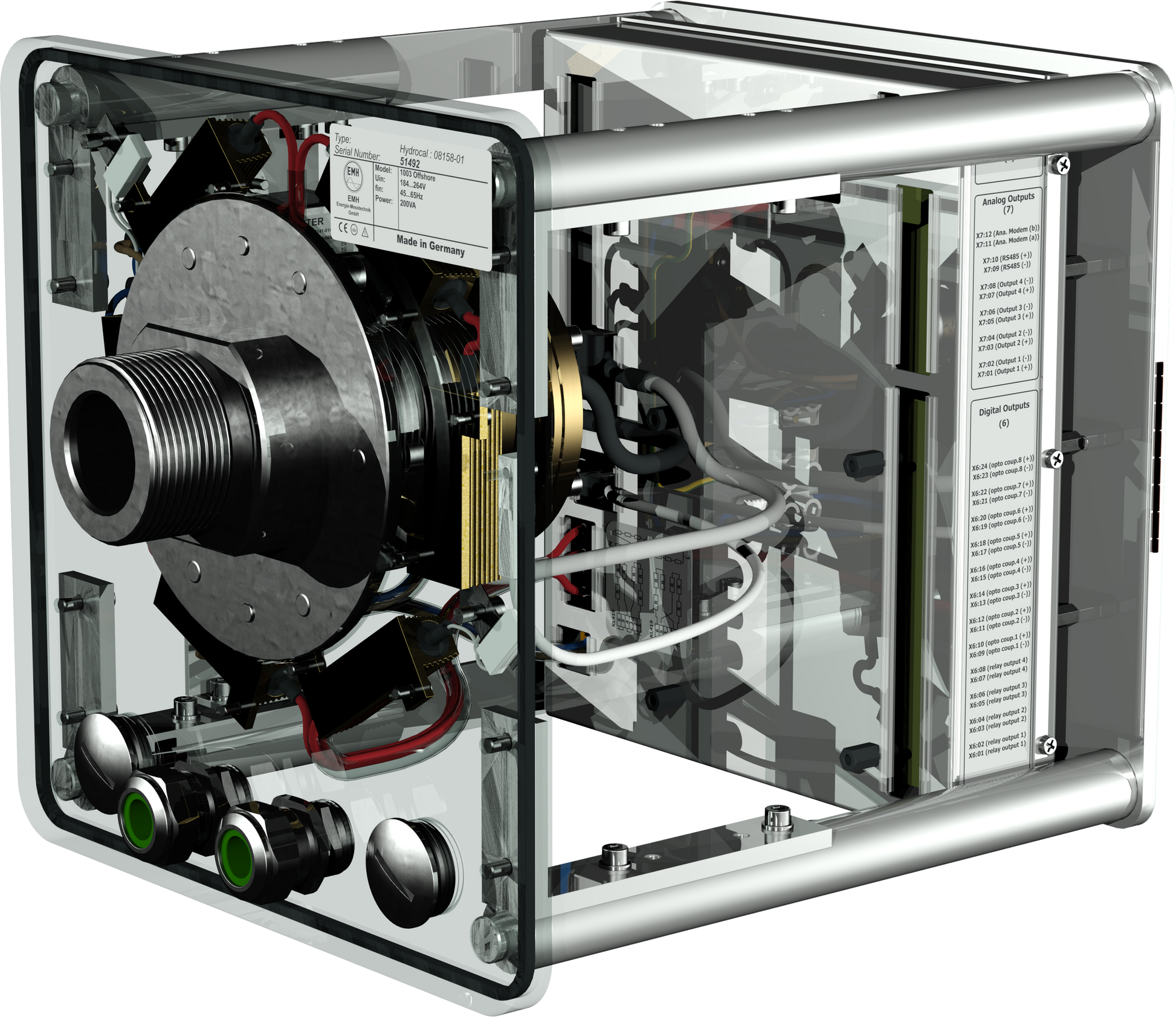

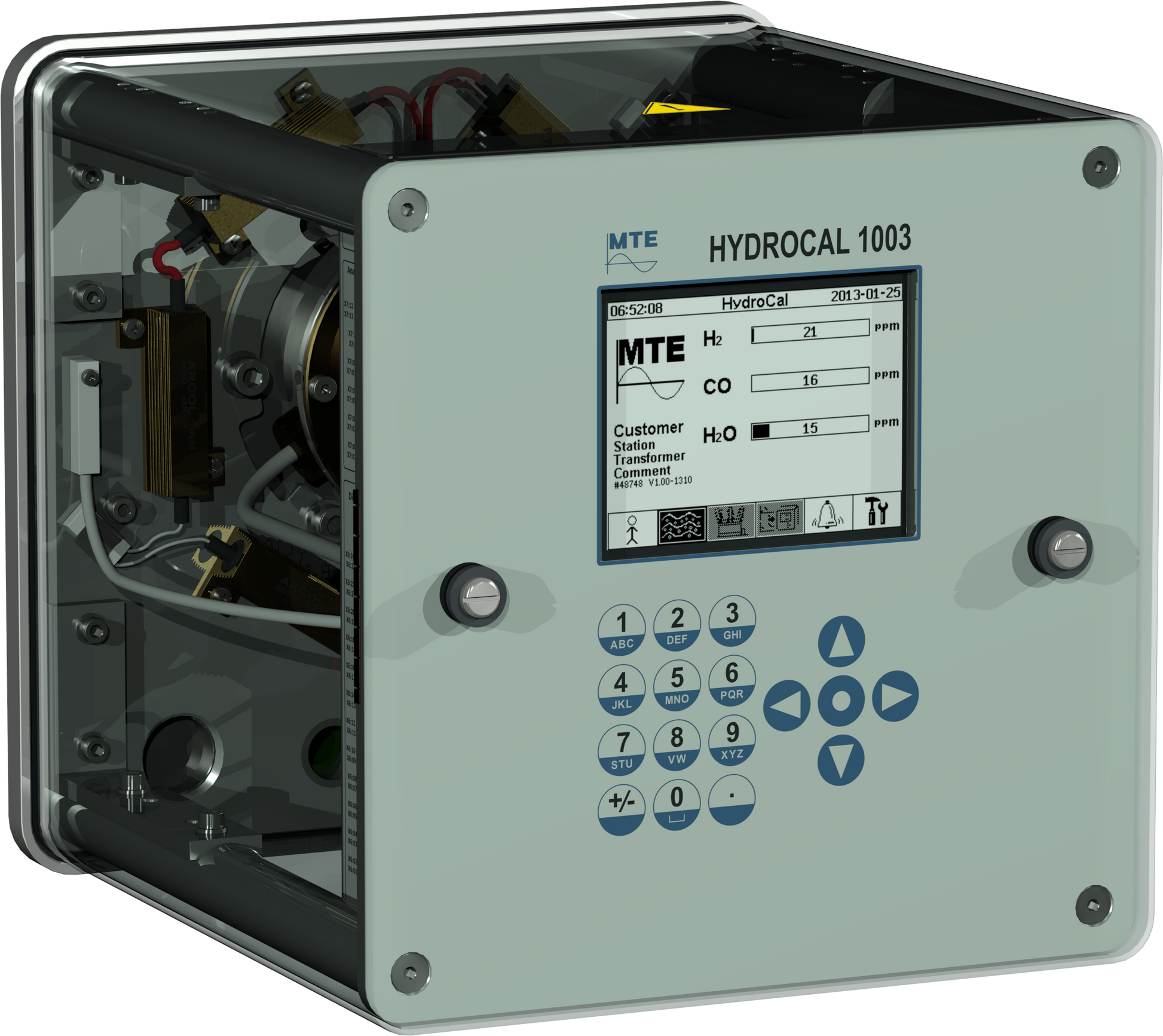

HYDROCAL 1003 Offshore

HYDROCAL 1003 Offshore

$0.00
$0.00
Sale Sold out

The HYDROCAL 1003 Offshore is an online monitoring system permanently mounted on the transformer and is specially designed for offshore wind power
applications. It measures continuously moisture in oil (H2O) and the most important fault gases hydrogen (H2) and carbon monoxide (CO).
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 200 VA
Housing:

Aluminium with painting CX / stainless steel V4A
Dimensions:

W 224 x H 224 x D 307.5 mm
Weight:

Approx. 9 kg
Operation temperature:

-50° C ... +55° C
(below -10° C display function locked)
Storage temperature:

-20° C ... +65° C
Isolation protection:

IEC 61010-1:2002
Degree of protection:

IP-55
Oil temperature:

-20° C ... +90° C
Oil Pressure:

up to 800 kpa
(NO negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
