HYDROCAL 1005

HYDROCAL 1005

$0.00
$0.00
Sale Sold out

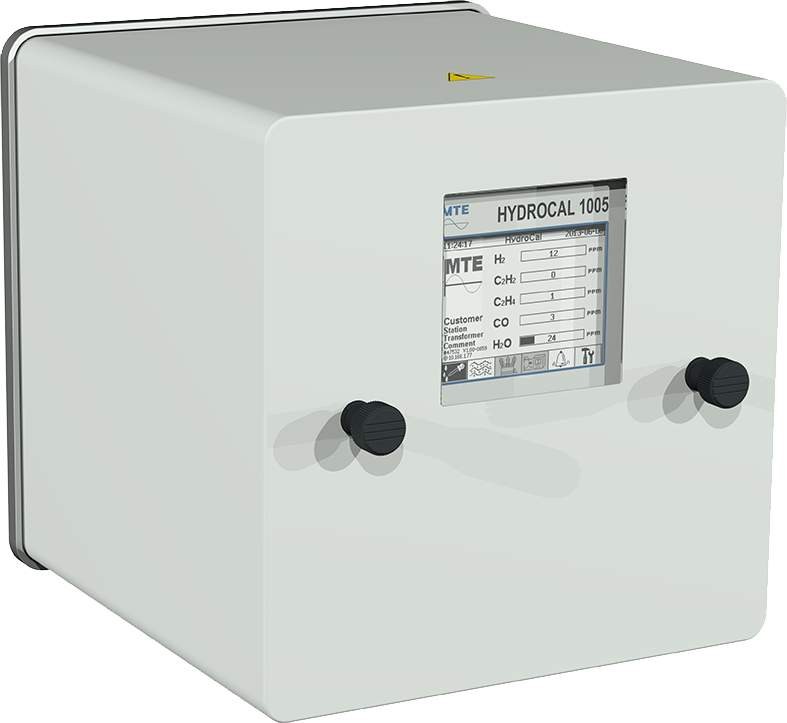

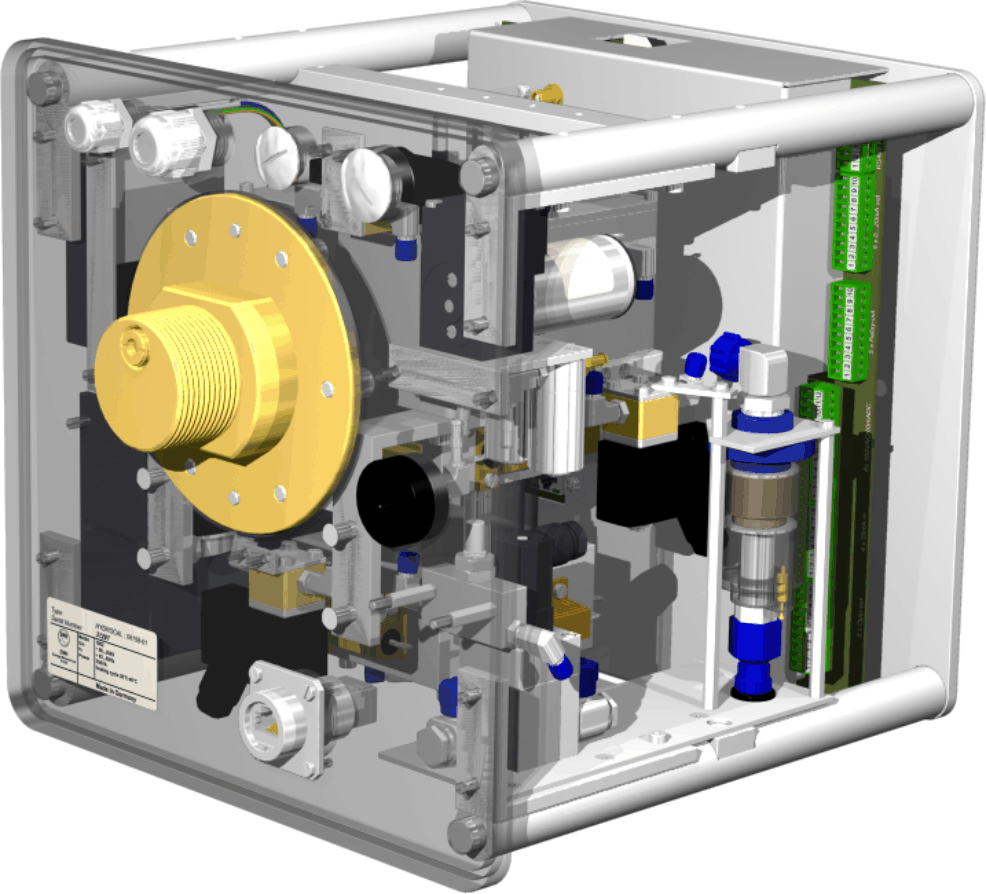

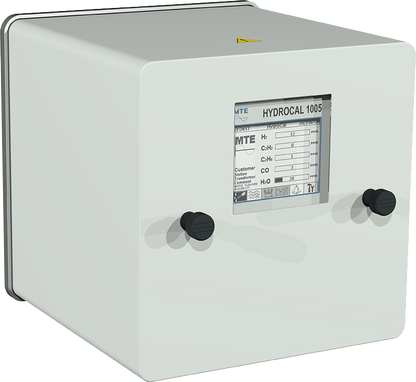

The HYDROCAL 1005 is a permanently-installed multi-gas-in-oil analysis system with transformer monitoring functions. It allows for the individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Acetylene (C2H2) and  Ethylene (C2H4) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 400 VA
Housing:

Aluminium
Dimensions:

W 263 x H 274 x D 331 mm
Weight:

Approx. 13.5 kg
Operation temperature:

-55°C ... +55°C
(below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Oil temperature:

-20°C ... +90°C
Oil Pressure:

up to 800 kpa (negative pressure allowed)

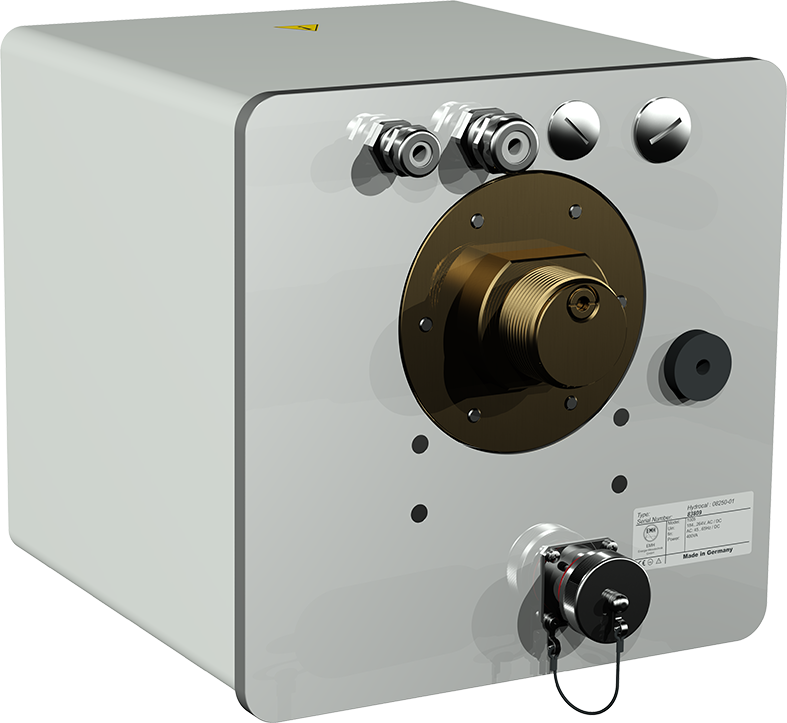

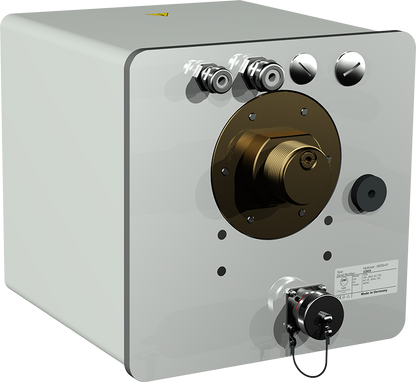

Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
