HYDROCAL 1005 Offshore

HYDROCAL 1005 Offshore

$0.00
$0.00
Sale Sold out

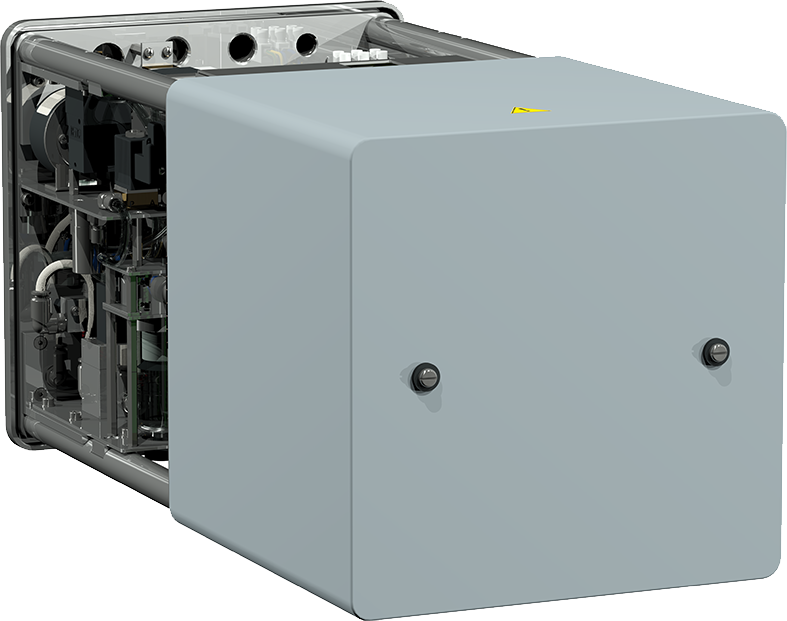

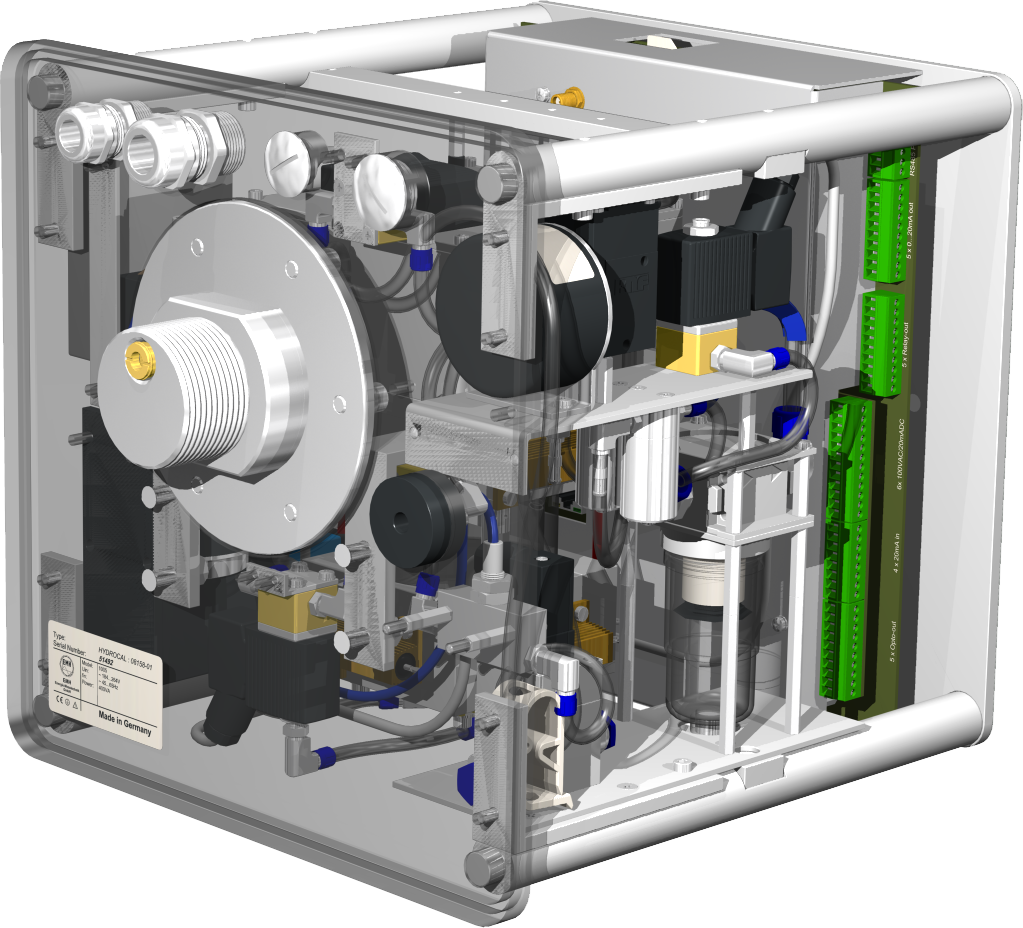

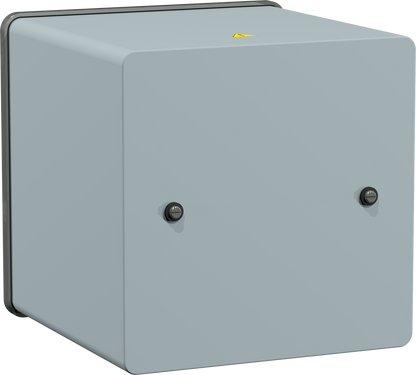

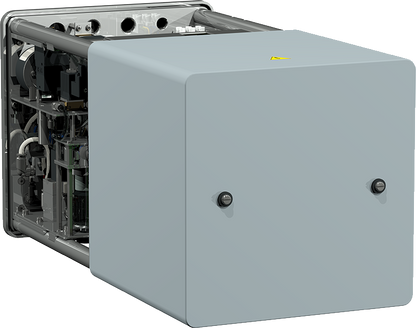

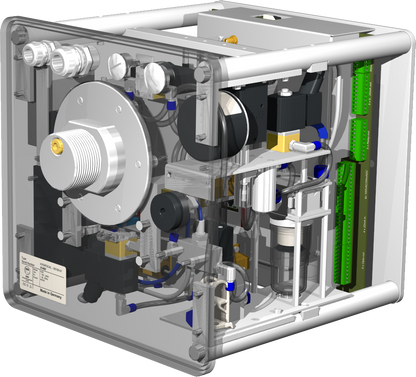

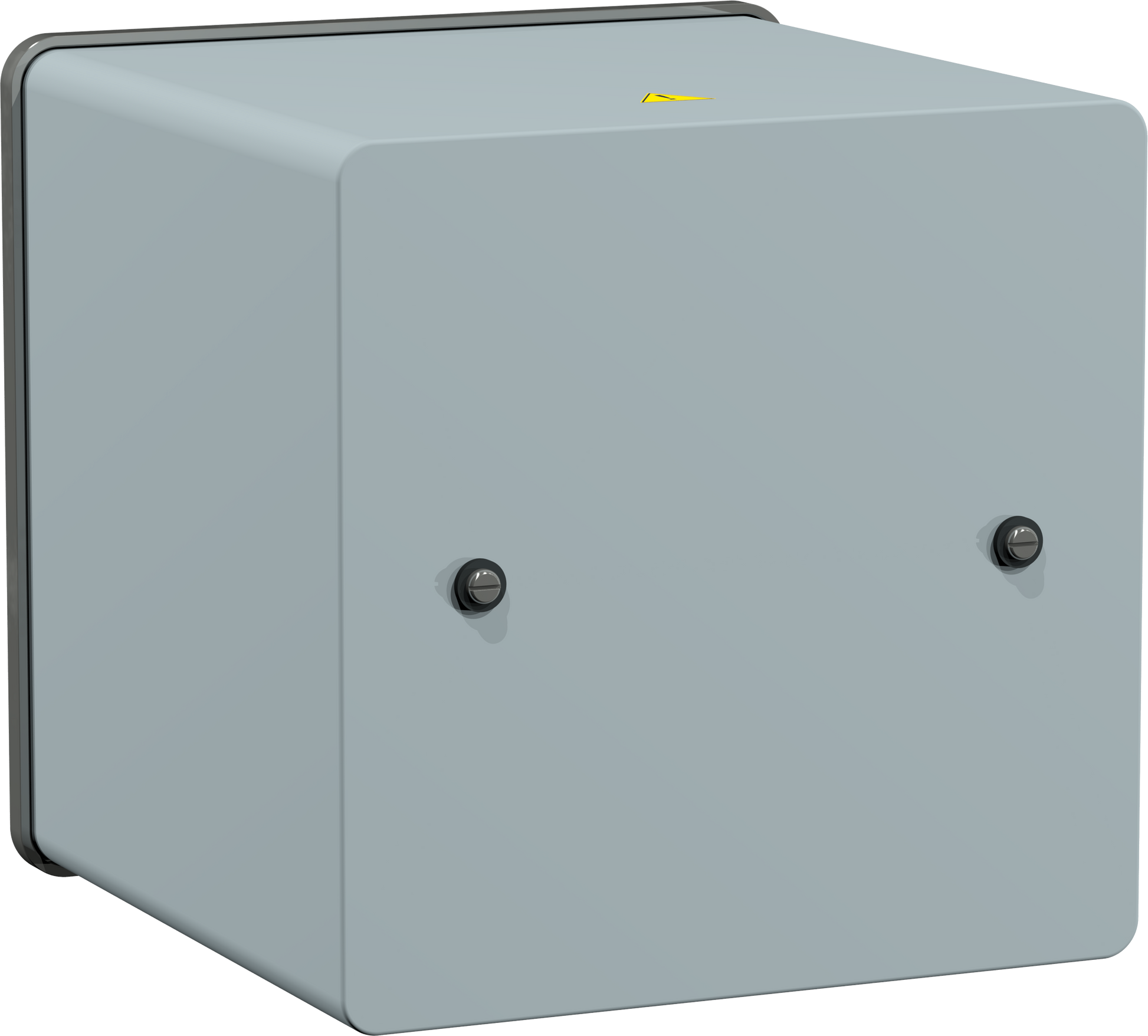

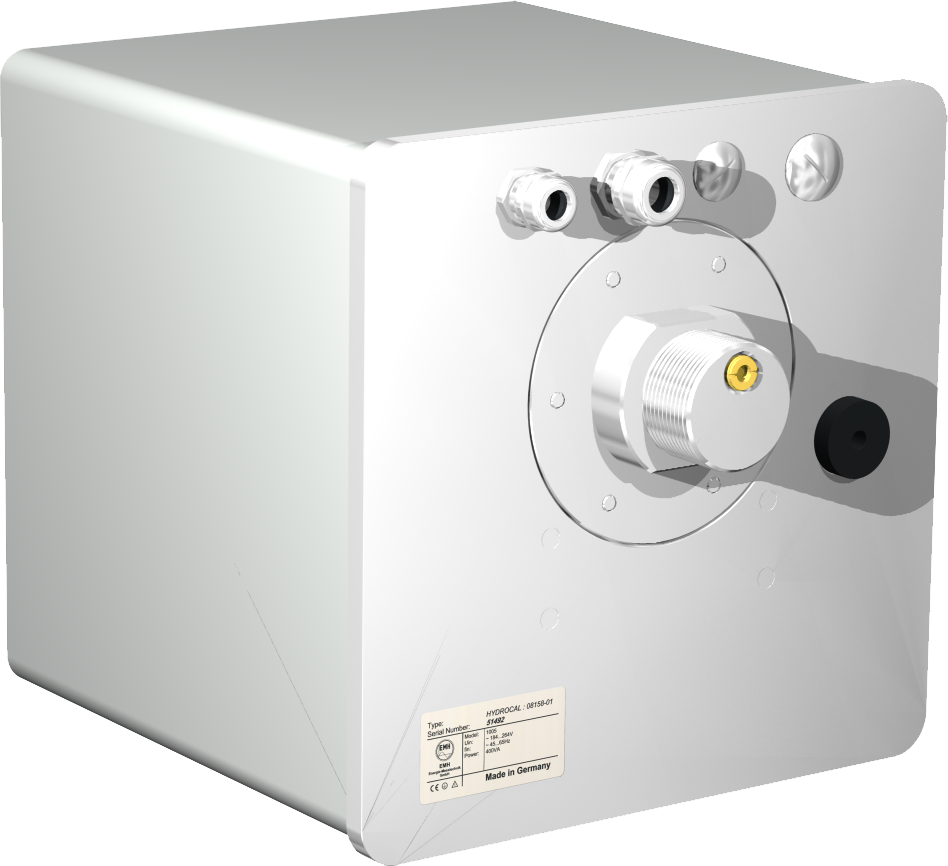

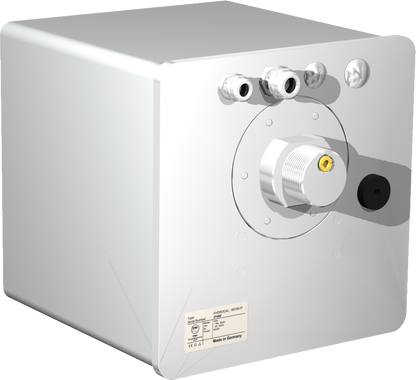

The HYDROCAL 1005 Offshore is an online monitoring system permanently mounted on the transformer and is special designed for Offshore Wind Power Applications. It allows for the  individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Acetylene (C2H2) and  Ethylene (C2H4) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 400 VA
Housing:

Aluminium with painting CX / stainless steel V4A
Dimensions:

W 263 x H 263 x D 327.5 mm
Weight:

Approx. 16.5 kg
Operation temperature:

-55°C ... +55°C
(below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Isolation protection:

IEC 61010-1:2002
Degree of protection:

IP-55
Oil temperature:

-20°C ... +90°C
Oil Pressure:

up to 800 kpa (negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
