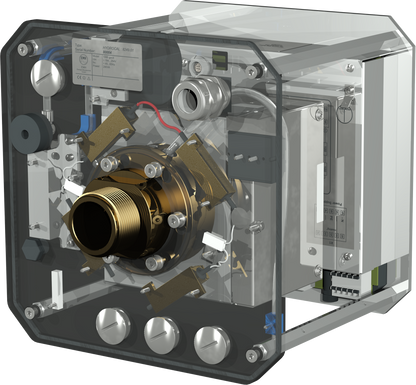

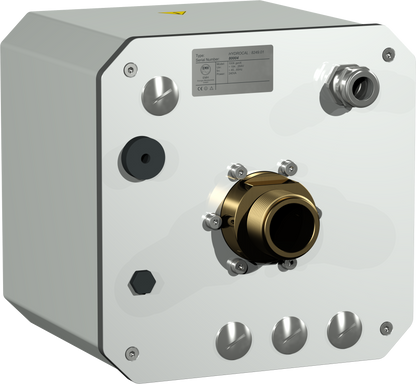

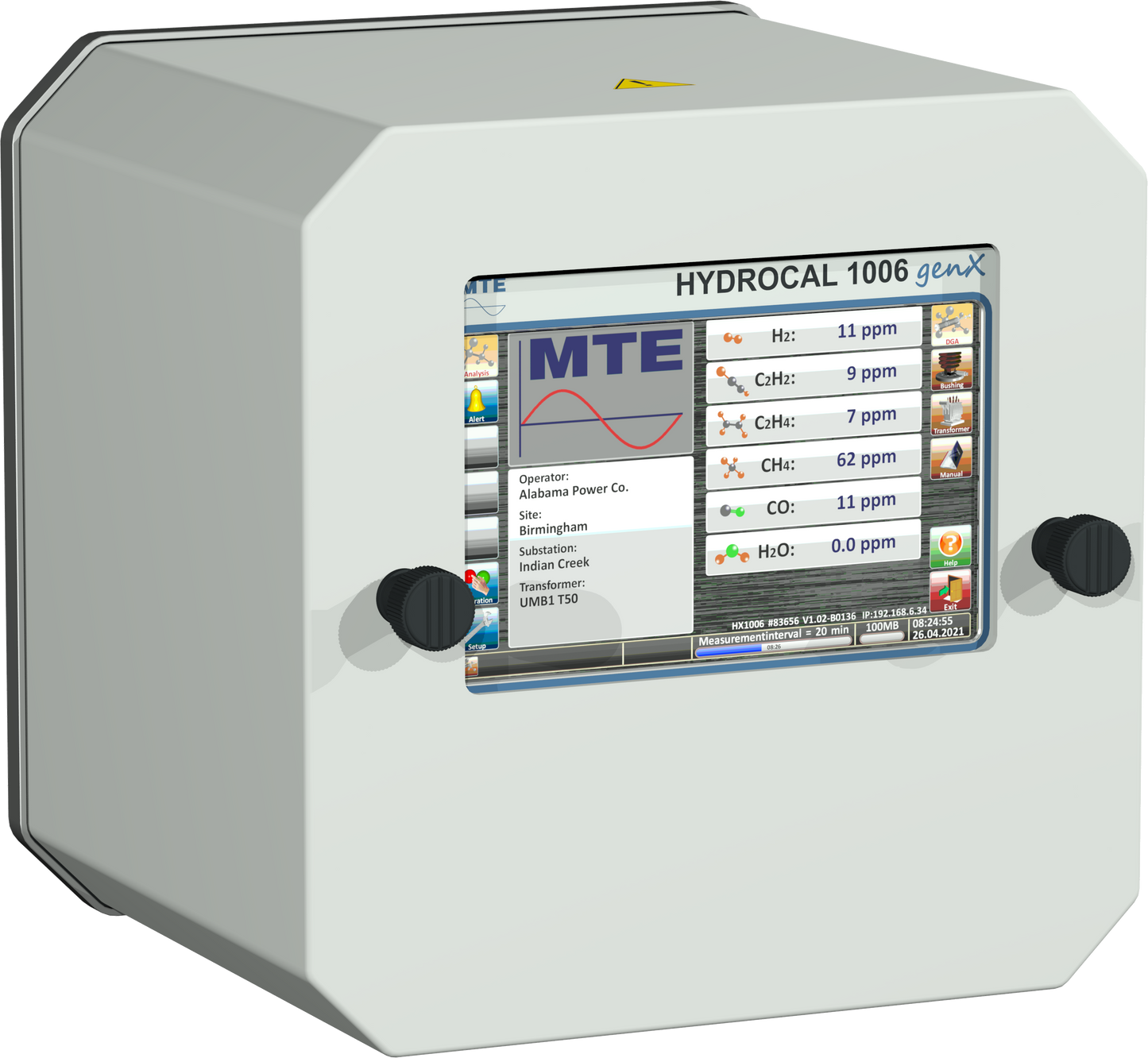

HYDROCAL 1006 genX

HYDROCAL 1006 genX

$0.00
$0.00
Sale Sold out

The new HYDROCAL 1006 genX is the first truly maintenance-free multi-gas online DGA solution combining proven near infrared (NIR) measuring technology with vacuum protected membrane extraction.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
130 V +15 % DC
Power consumption:

max. 240 VA
Housing:

Aluminium
Dimensions:

W 250 x H 250 x D 286 mm
Weight:

Approx. 8 kg
Operation temperature:

-55° C ... +55° C
(below -10° C display function locked)
Storage temperature:

-20° C ... +65° C
Isolation protection:

IEC 61010-1
Degree of protection:

IP-55
Oil temperature:

-20° C ... +105° C
Oil Pressure:

up to 800 kpa
(NO negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
