HYDROCAL 1008

HYDROCAL 1008

$0.00
$0.00
Sale Sold out

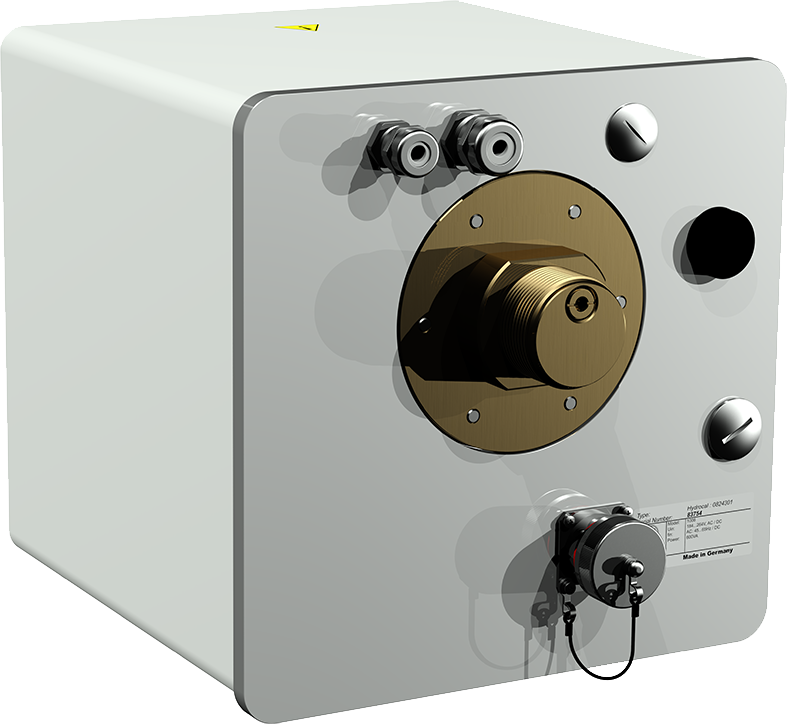

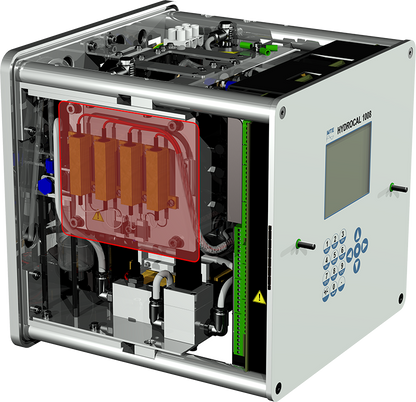

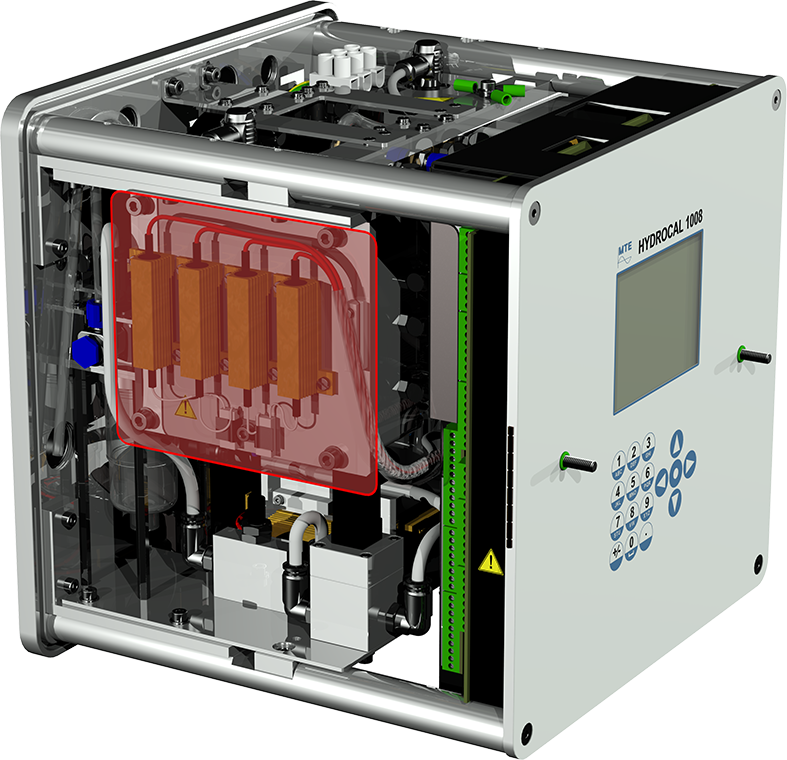

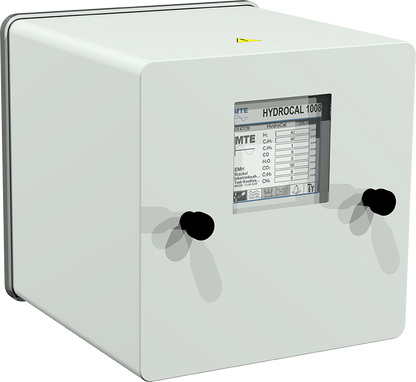

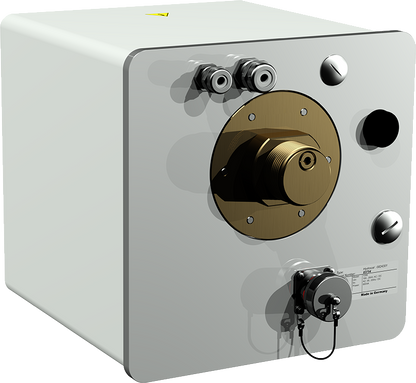

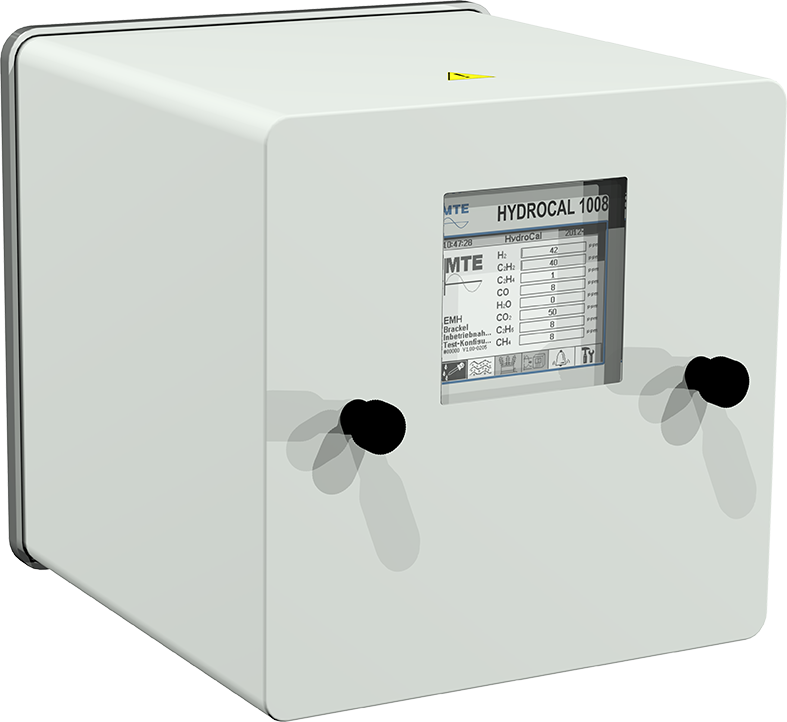

The HYDROCAL 1008 is a permanently-installed multi-gas-in-oil analysis system with transformer monitoring functions. It allows for the individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4) and  Ethane (C2H6) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 600 VA
Housing:

Aluminium
Dimensions:

W 263 x H 274 x D 331 mm
Weight:

Approx. 15 kg
Operation temperature:

-55°C ... +55°C
(below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Oil temperature:

-20°C ... +90°C
Oil Pressure:

up to 800 kpa (negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
