HYDROCAL 1009

HYDROCAL 1009

$0.00
$0.00
Sale Sold out

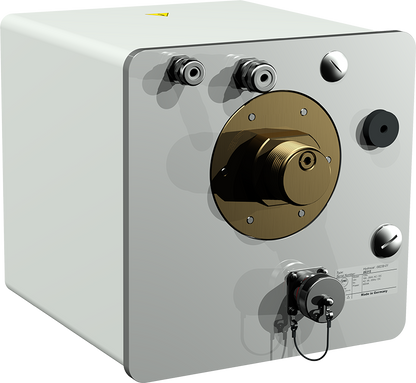

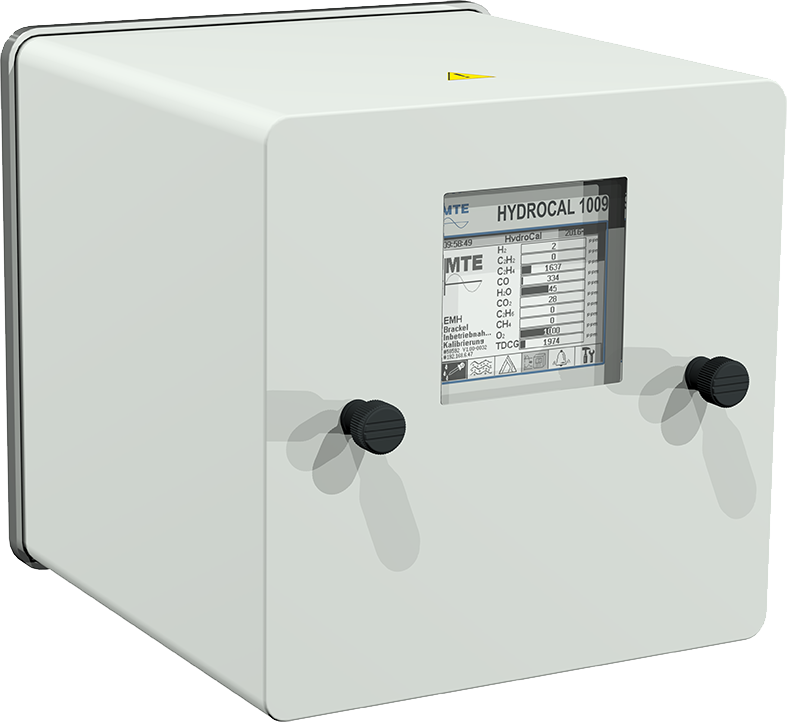

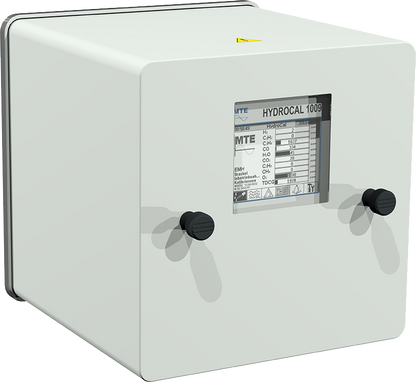

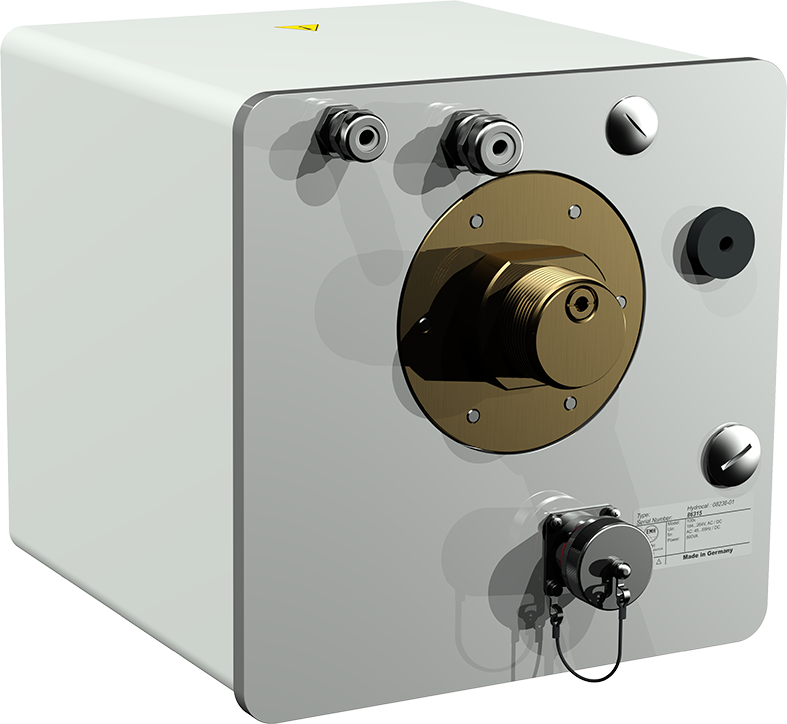

The HYDROCAL 1009 is a permanently installed multi-gas-in-oil analysis system with transformer monitoring functions. It individually measures, Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6) and Oxygen (O2) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 600 VA
Housing:

Aluminium
Dimensions:

W 263 x H 274 x D 331 mm
Weight:

Approx. 15 kg
Operation temperature:

-55°C ... +55°C
(below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Oil temperature:

-20°C ... +90°C
Oil Pressure:

up to 800 kpa (negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1or 1½" NPT ANSI B 1.20.1
