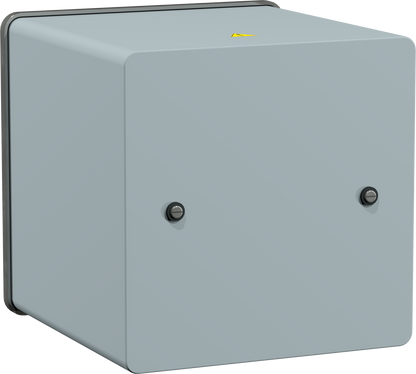

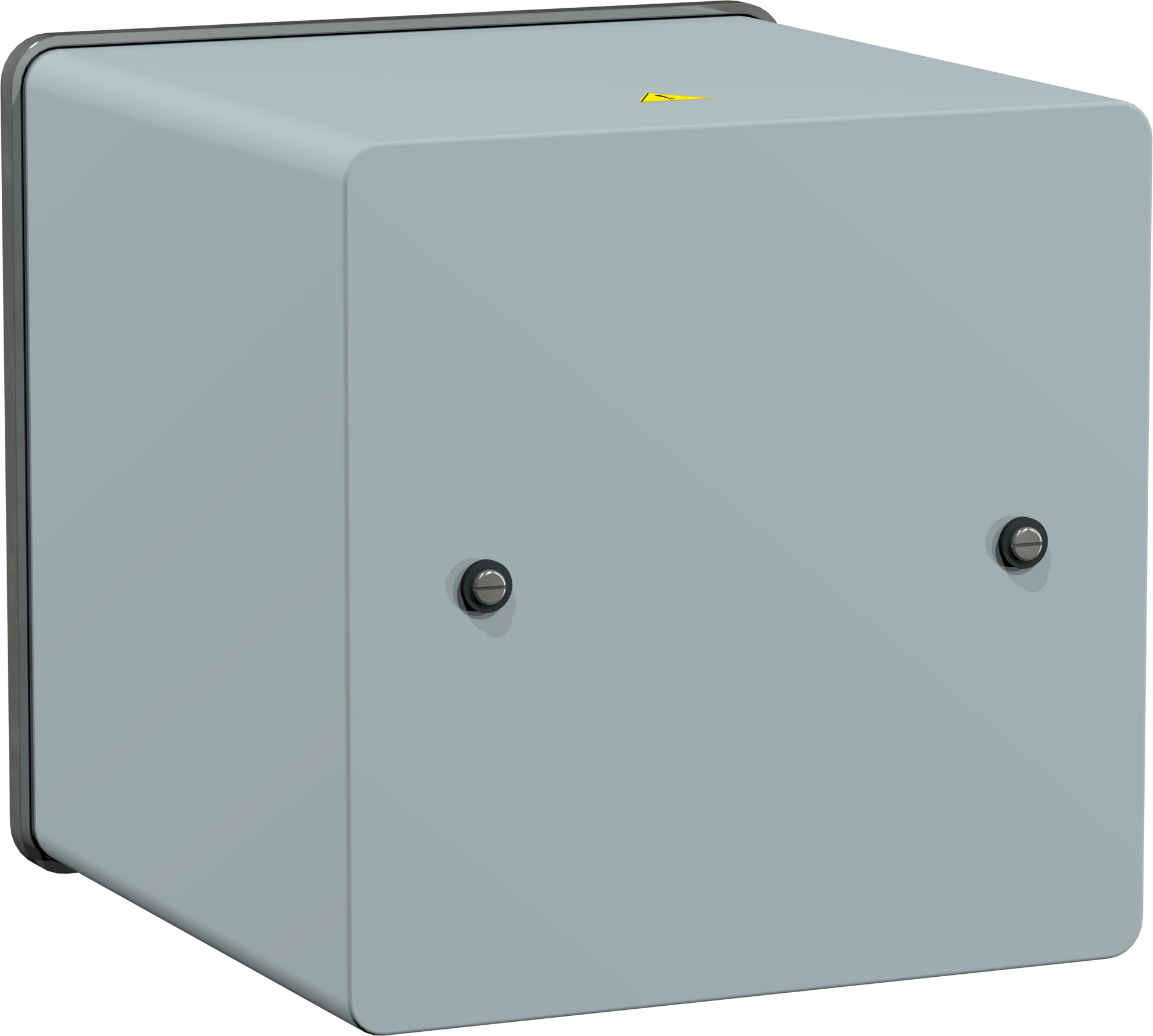

HYDROCAL 1009 Offshore

HYDROCAL 1009 Offshore

$0.00
$0.00
Sale Sold out

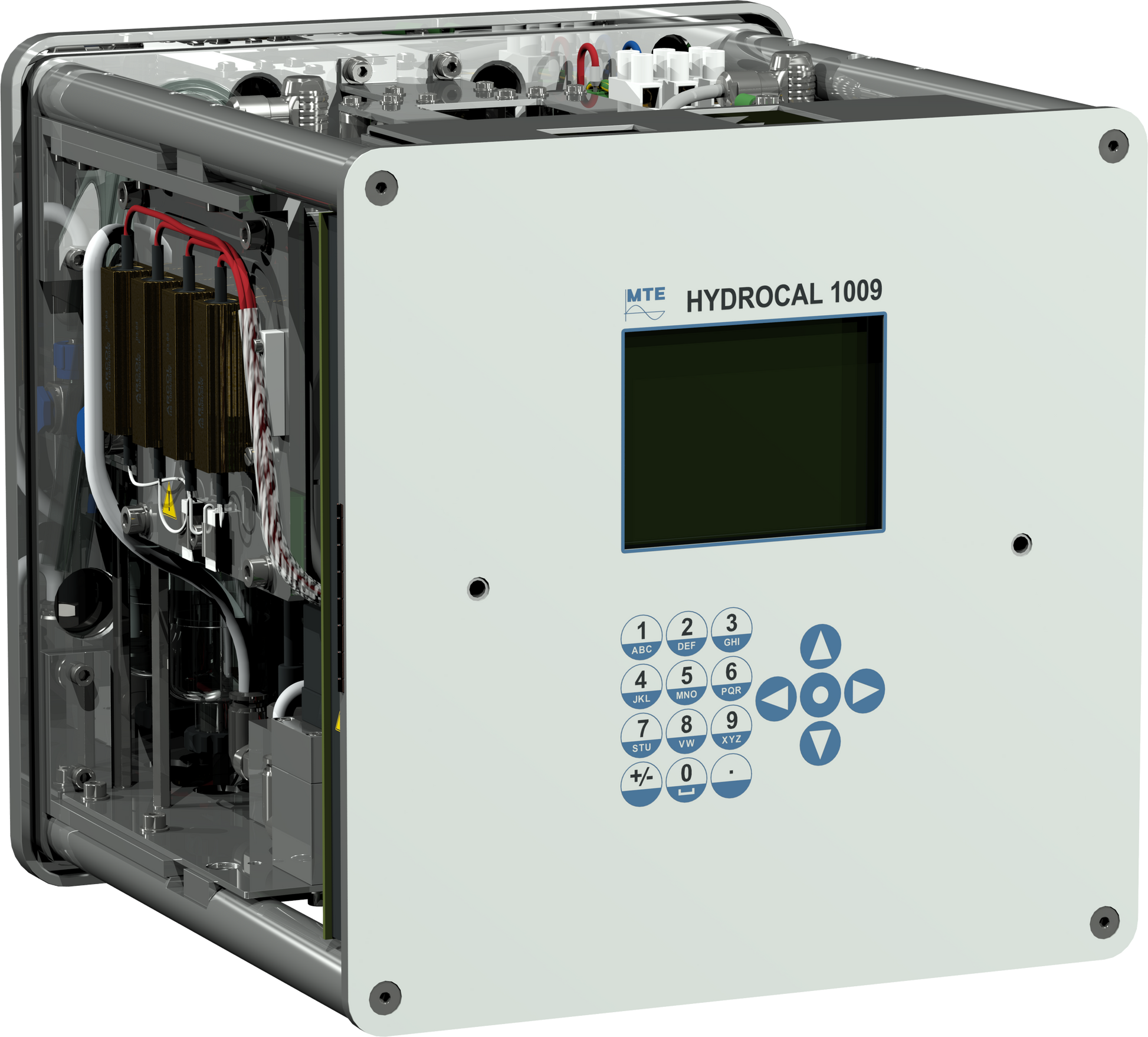

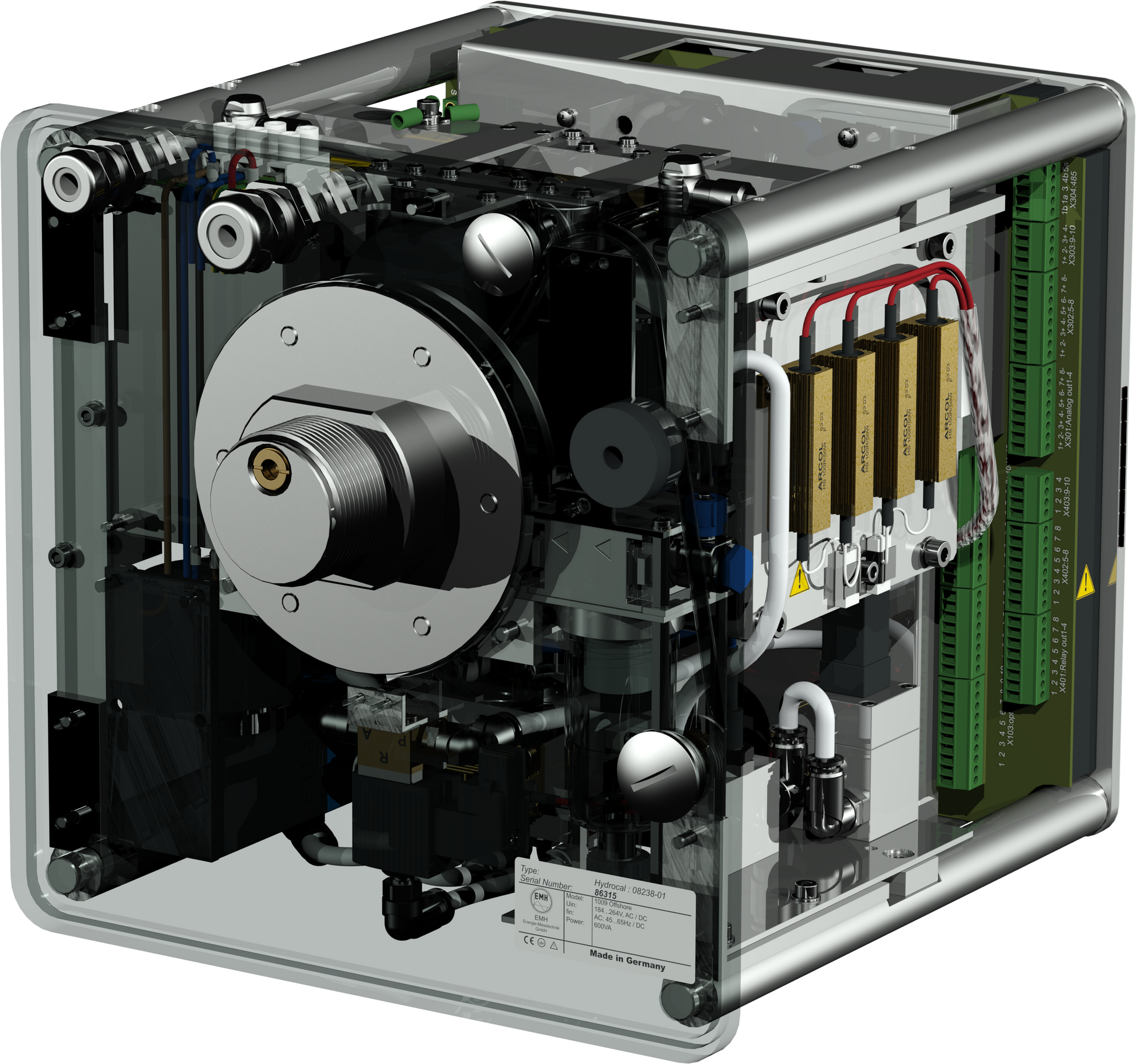

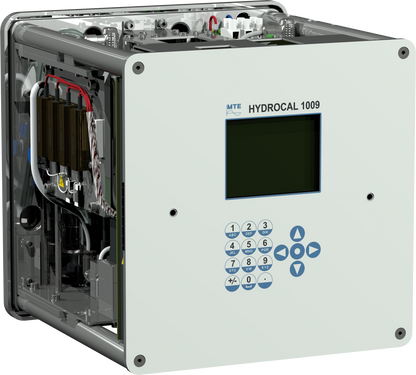

The HYDROCAL 1009 Offshore is a permanently installed multi-gas-in-oil analysis system with transformer monitoring functions. It individually measures, Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6) and Oxygen (O2) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 600 VA
Housing:

Aluminium with painting CX / stainless steel V4A
Dimensions:

W 263 x H 263 x D 327.5 mm
Weight:

Approx. 18 kg
Operation temperature:

-55°C ... +55°C
(below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Isolation protection:

IEC 61010-1:2002
Degree of protection:

IP-55
Oil temperature:

-20°C ... +90°C
Oil Pressure:

up to 800 kpa (negative pressure allowed)
Connection to valve:

G 1½" DIN ISO 228-1 or 1½" NPT ANSI B 1.20.1
