HYDROCAL 1011-3

HYDROCAL 1011-3

$0.00
$0.00
Sale Sold out

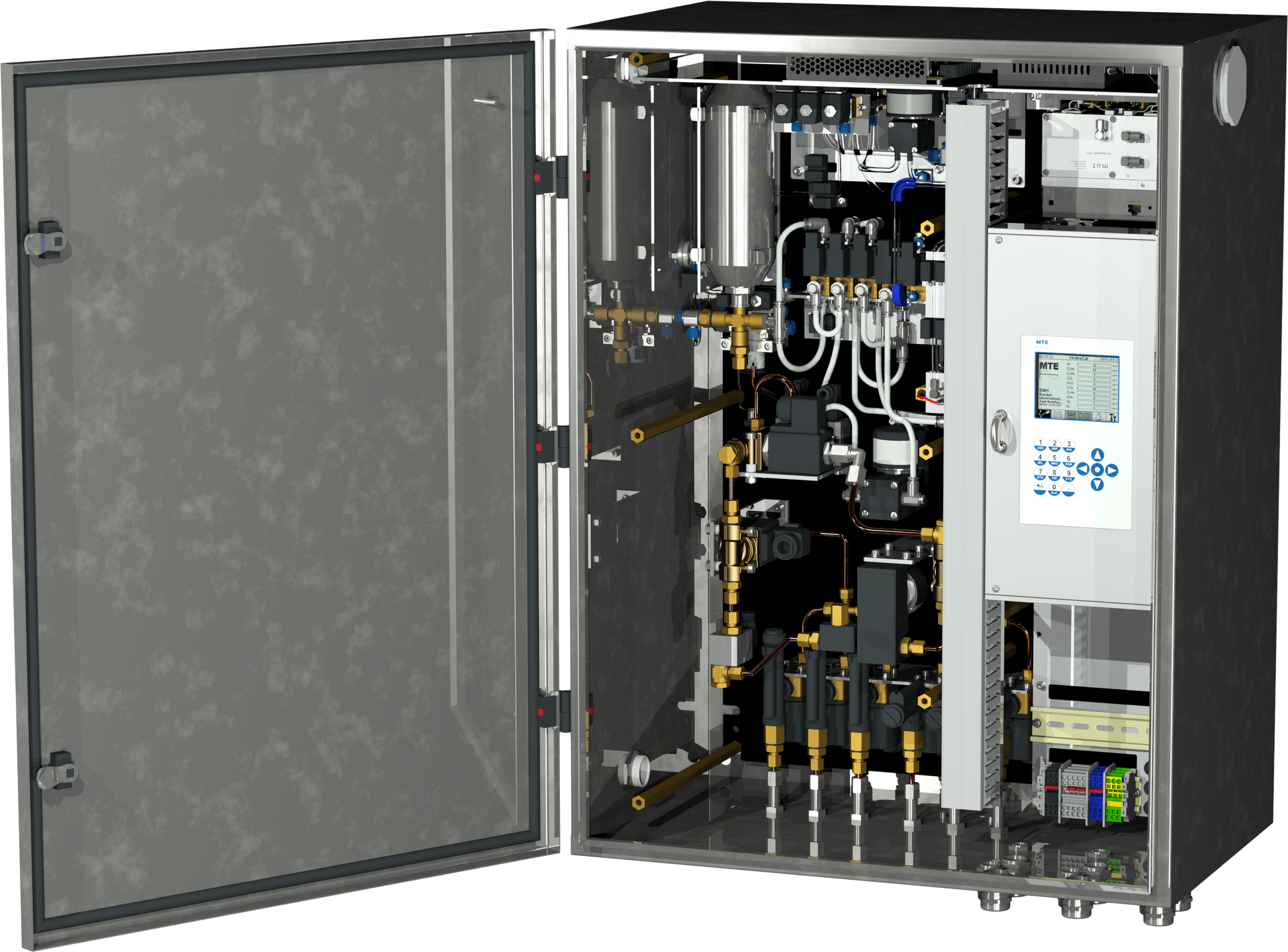

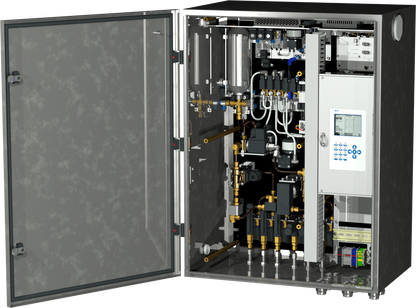

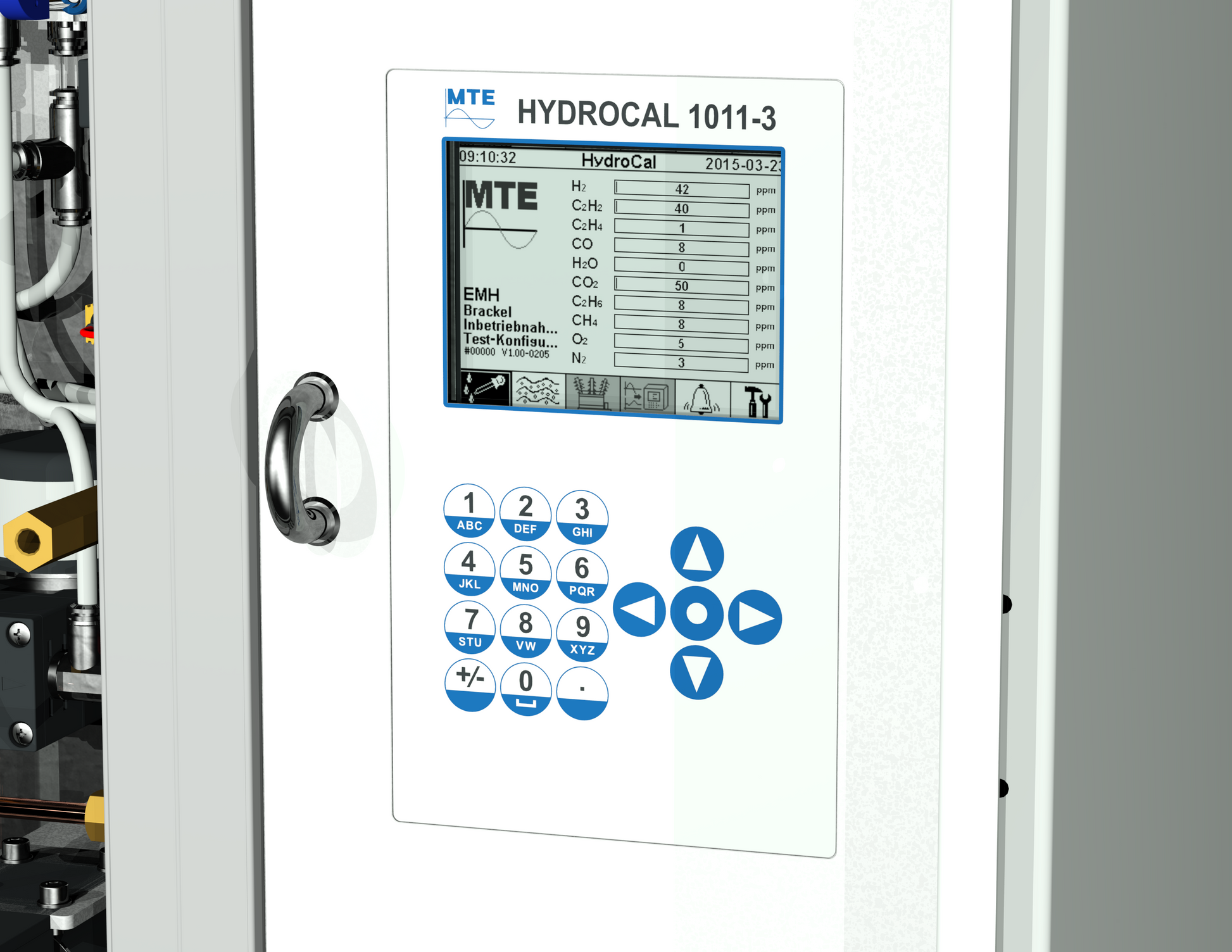

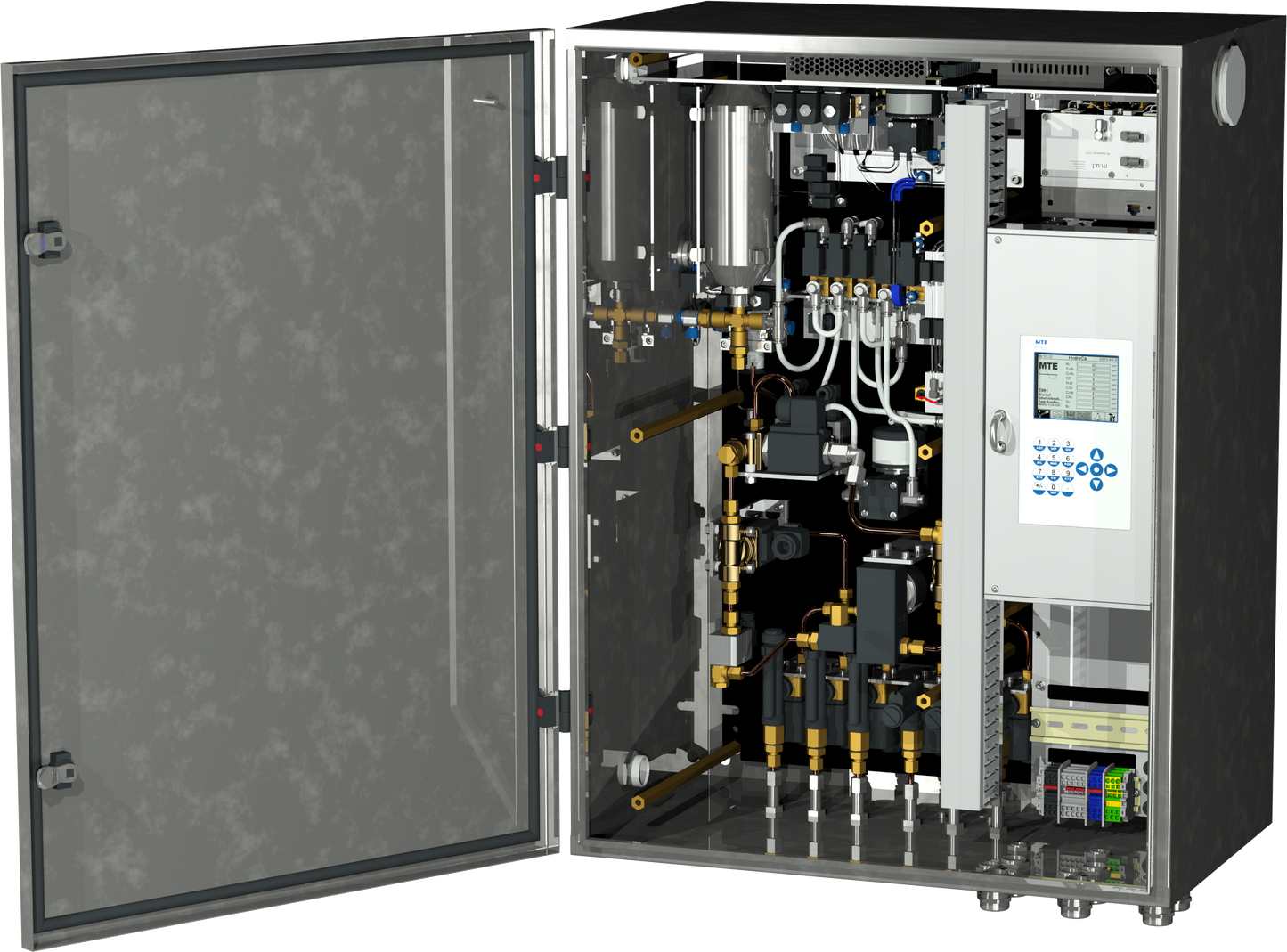

The HYDROCAL 1011-3 is designed for multi-gas-in-oil analysis on a bank of three single-phase transformers located next to each other. This new wall mounted system allows for the individual measurement of moisture in oil (H2O) and the key gases hydrogen (H2), carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), acetylene (C2H2), ethylene (C2H4), ethane (C2H6), oxygen (O2), nitrogen (N2) and propane (C3H8) dissolved in transformer oil utilizing a system that samples oil from each tank via three separate oil channels expertly engineered to provide negligible mixing of oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC 50/60 Hz or
120 V -20 % +15 % DC or
230 V -20 % +15 % DC
Other nominal voltages on request!
Power consumption:

max. 650 VA
Housing:

Stainless Steel
Dimensions:

W 600 x H 855 x D 400 mm
Weight:

Approx. 80 kg
Operation temperature:

-55°C ... +55°C (below -10°C display function locked)
Storage temperature:

-20°C ... +65°C
Oil temperature:

-20°C ... +105°C
Connection to valve:

All Valves possible / pipe with diameter of 6 mm connectable without adapters 2 valves necessary (in/out) / max. distance 30 m
