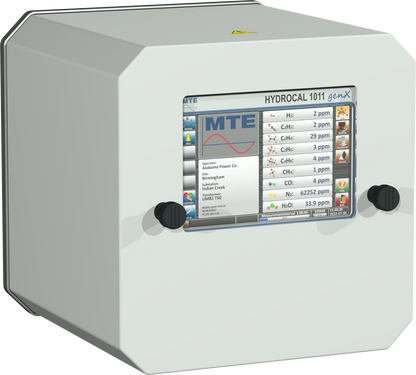

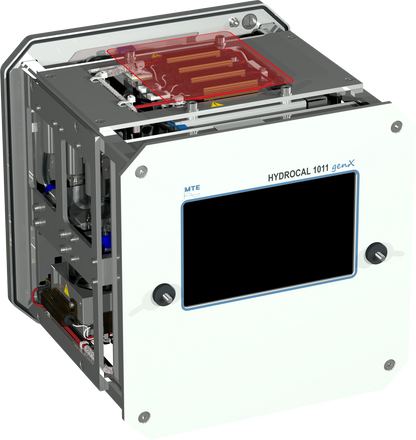

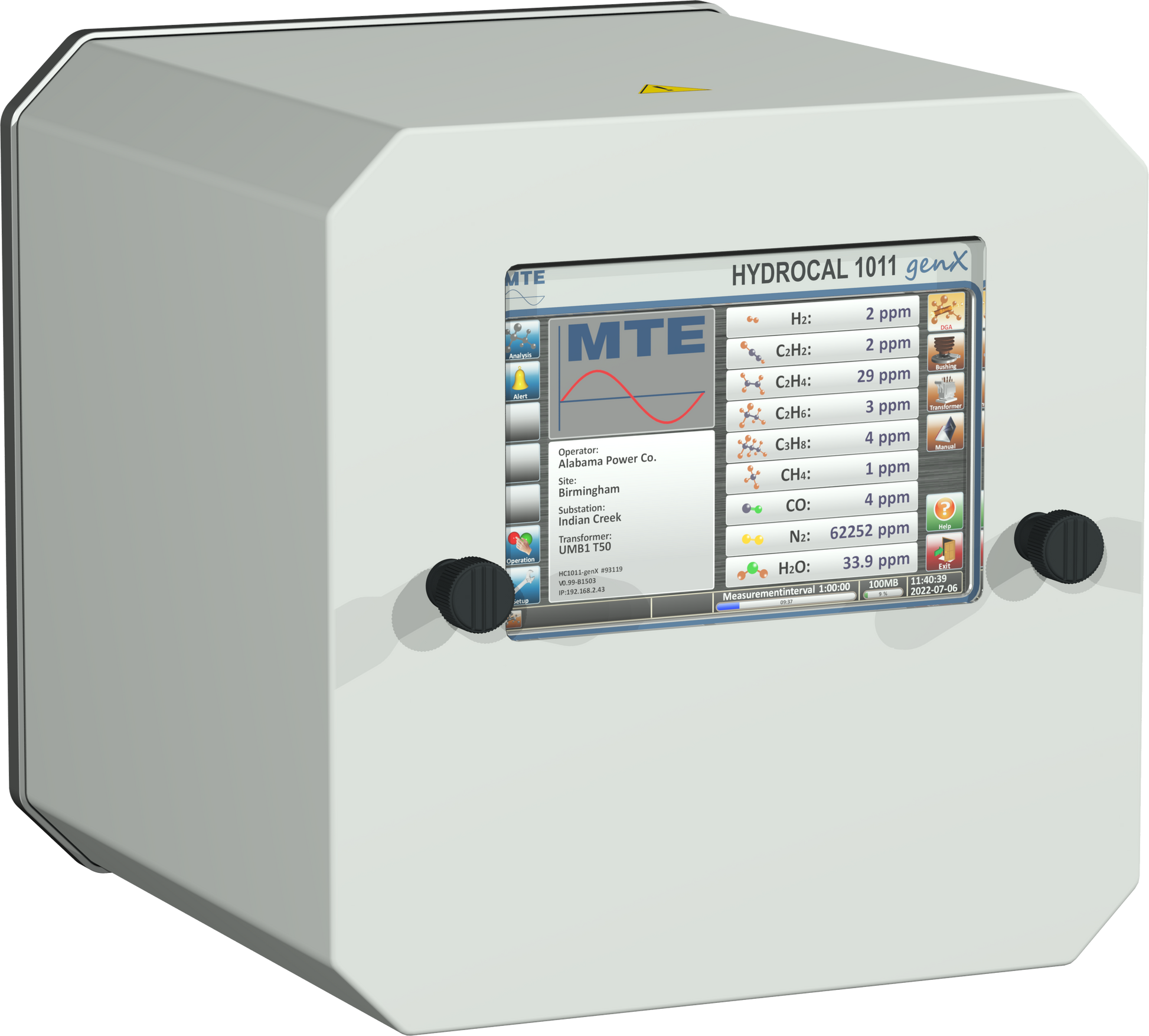

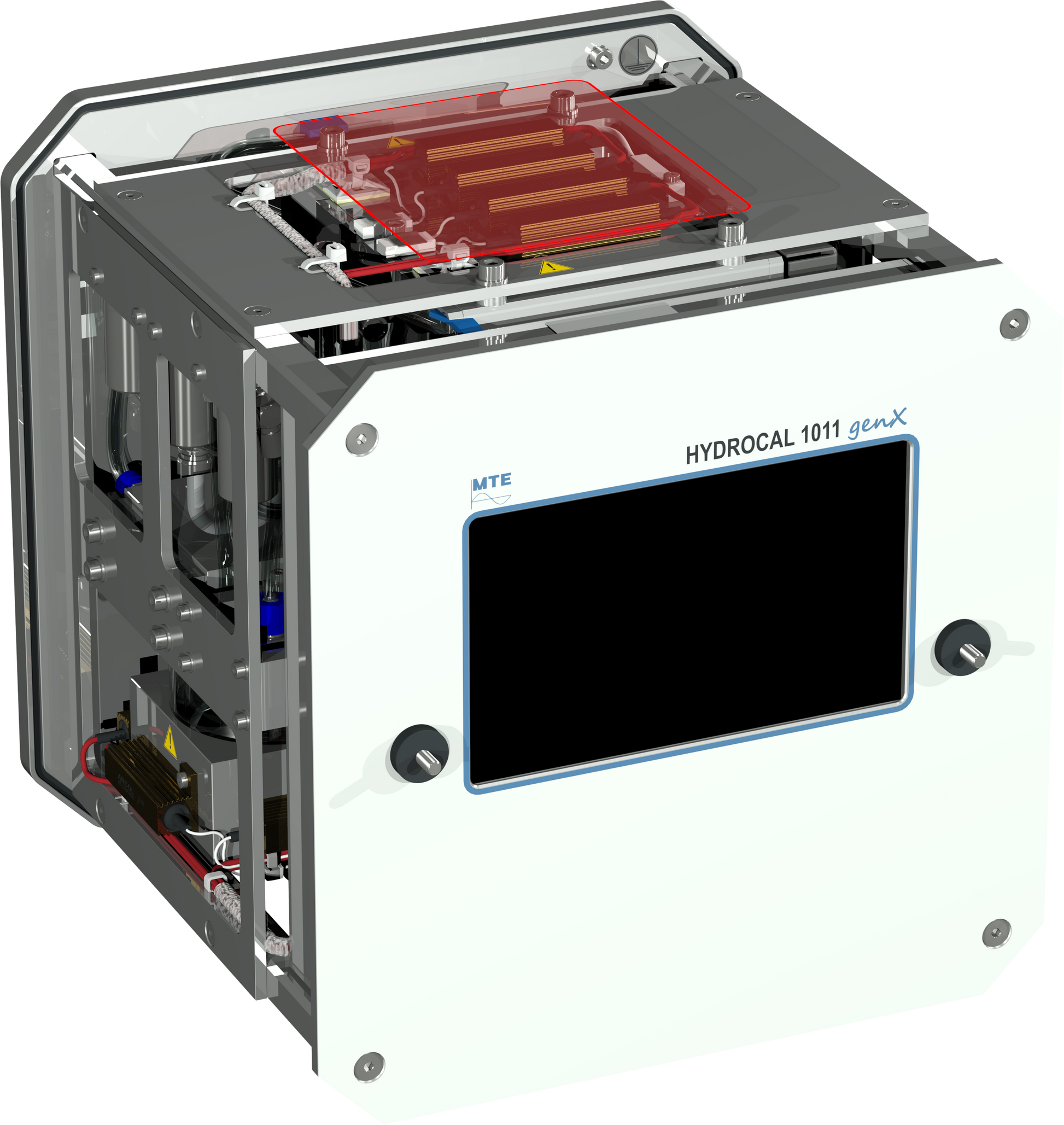

HYDROCAL 1011 genX

HYDROCAL 1011 genX

$0.00
$0.00
Sale Sold out

The new HYDROCAL 1011 genX is a full-range / maintenance-free multi-gas online DGA solution combining proven near infrared (NIR) measuring technology with miniaturized gas sample production based on headspace principle (no membrane, negative pressure-proofed). It individually measures Moisture in oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Oxygen (O2), Nitrogen (N2) and Propane (C3H8) dissolved in transformer oil.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC/DC 50/60 Hz or
120 V +15 % DC
Power consumption:

max. 320 VA
Housing:

Aluminium
Dimensions:

W 270 x H 270 x D 333.5 mm
Weight:

approx. 13.5 kg
Operation temperature:

-55° C ... +55° C
(below -10°C display function locked)
Storage temperature:

-20° C … +65° C
Oil temperature:

-20° C ... +120° C
Oil Pressure:

0 … 800 kPa

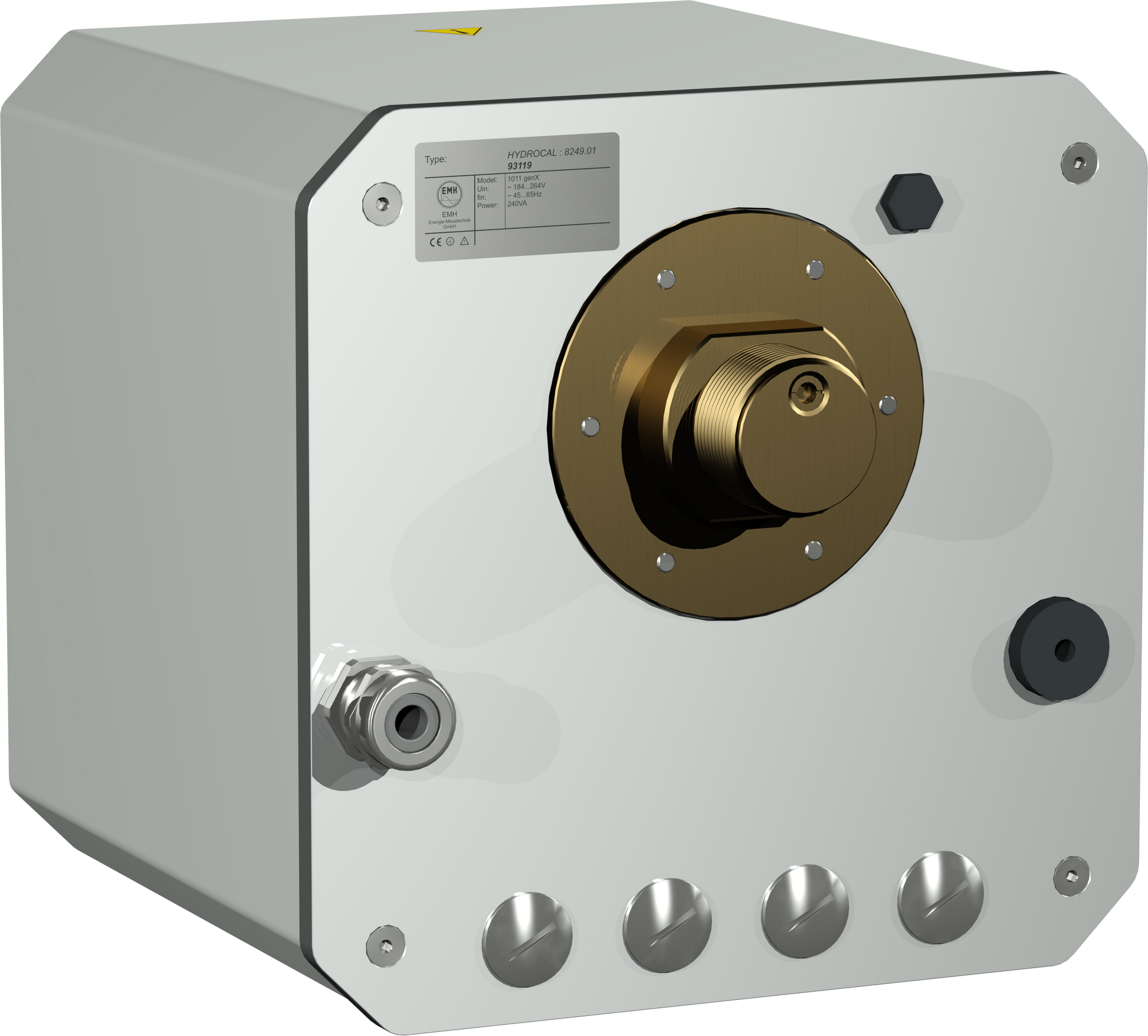

Connection to valve:

G 1½" DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1
