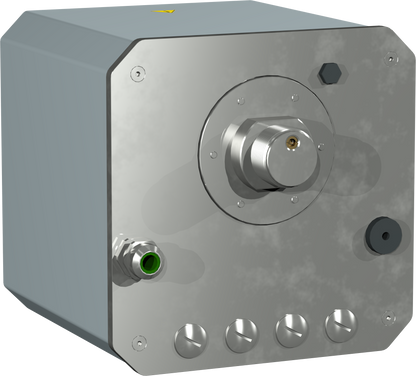

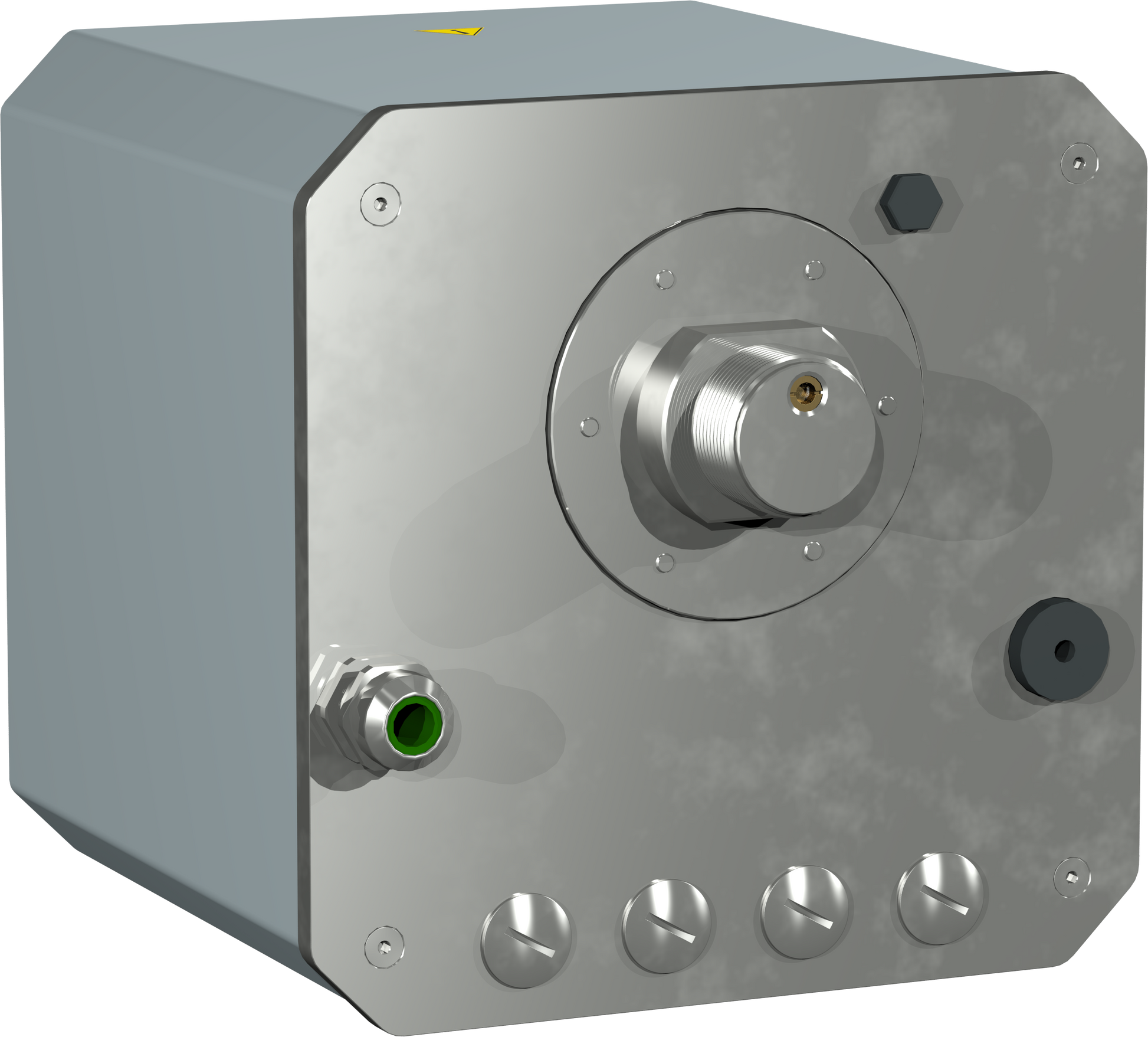

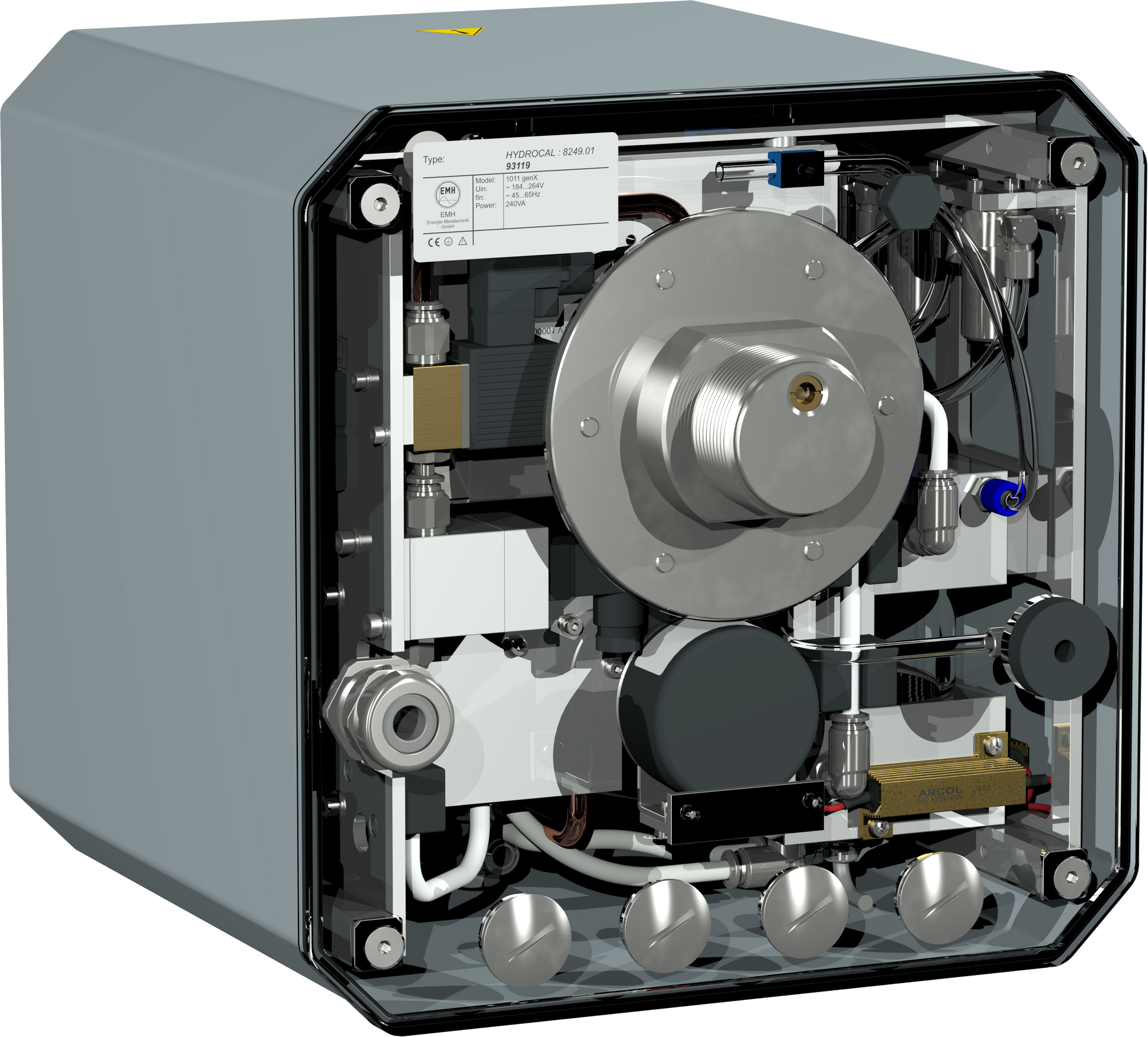

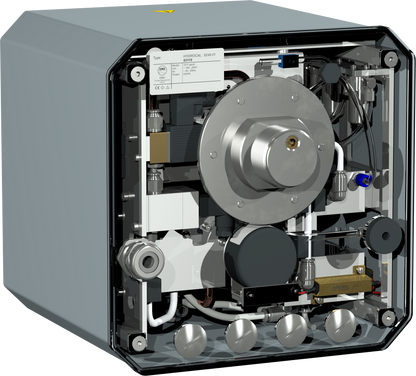

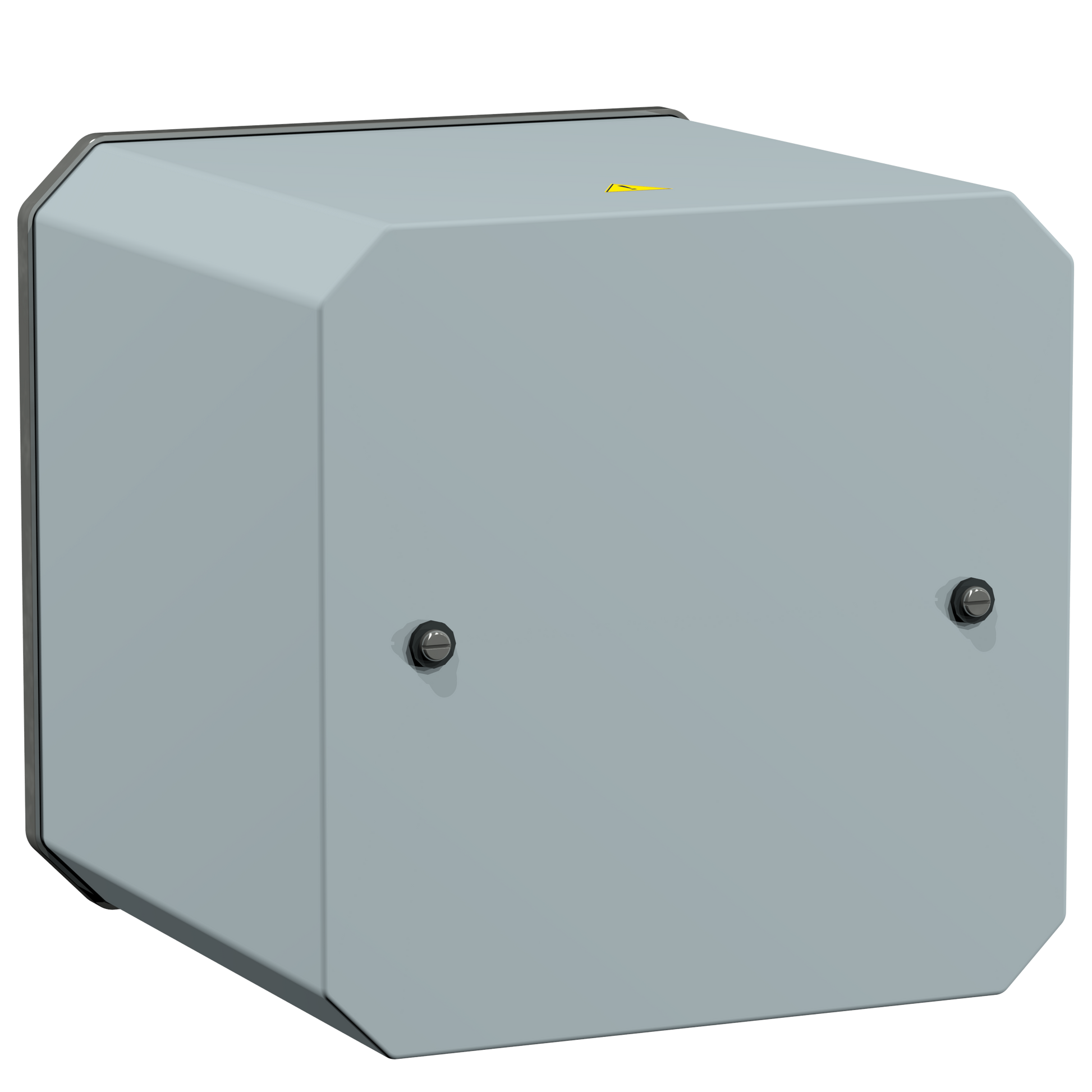

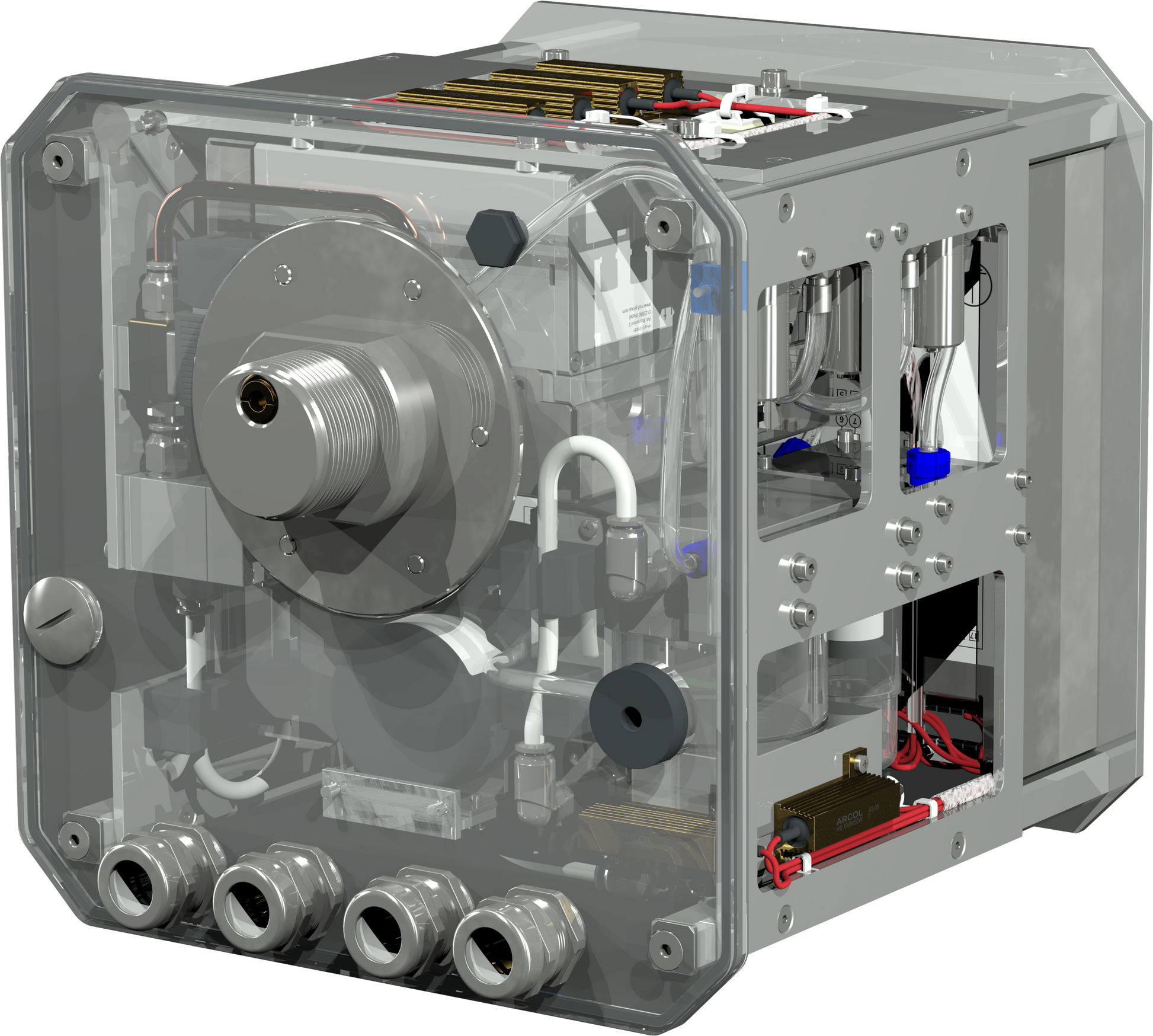

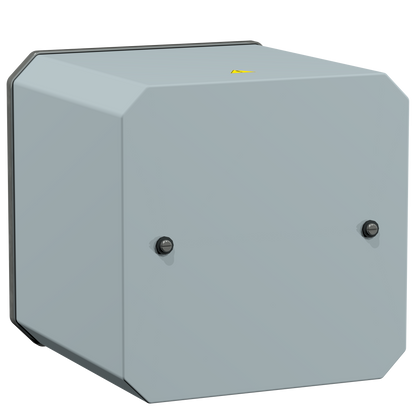

HYDROCAL 1011 genX Offshore

HYDROCAL 1011 genX Offshore

$0.00
$0.00
Sale Sold out

The HYDROCAL 1011 Offshore is specially designed for the harsh conditions (salt water, corrosion) on offshore platforms (e.g. offshore windmill parks). Special features such as a specially painted housing with no window and the use of chrome nickel and stainless steel ensure the reliability and the longevity of the device.
View full details

Technical Details

Auxiliary power supply:

120 V -20 % +15 % AC 50/60 Hz or
230 V -20 % +15 % AC/DC 50/60 Hz or
120 V +15 % DC
Power consumption:

max. 320 VA
Housing:

Aluminium with painting CX / stainless steel V4A
Dimensions:

W 270 x H 270 x D 333.5 mm
Weight:

approx. 13.5 kg
Operation temperature:

-55° C ... +55° C
(below -10°C display function locked)
Storage temperature:

-20° C … +65° C
Oil Pressure:

0 … 800 kPa
Connection to valve:

G 1½" DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1
