PPL 150

PPL 150

$0.00
$0.00
Sale Sold out

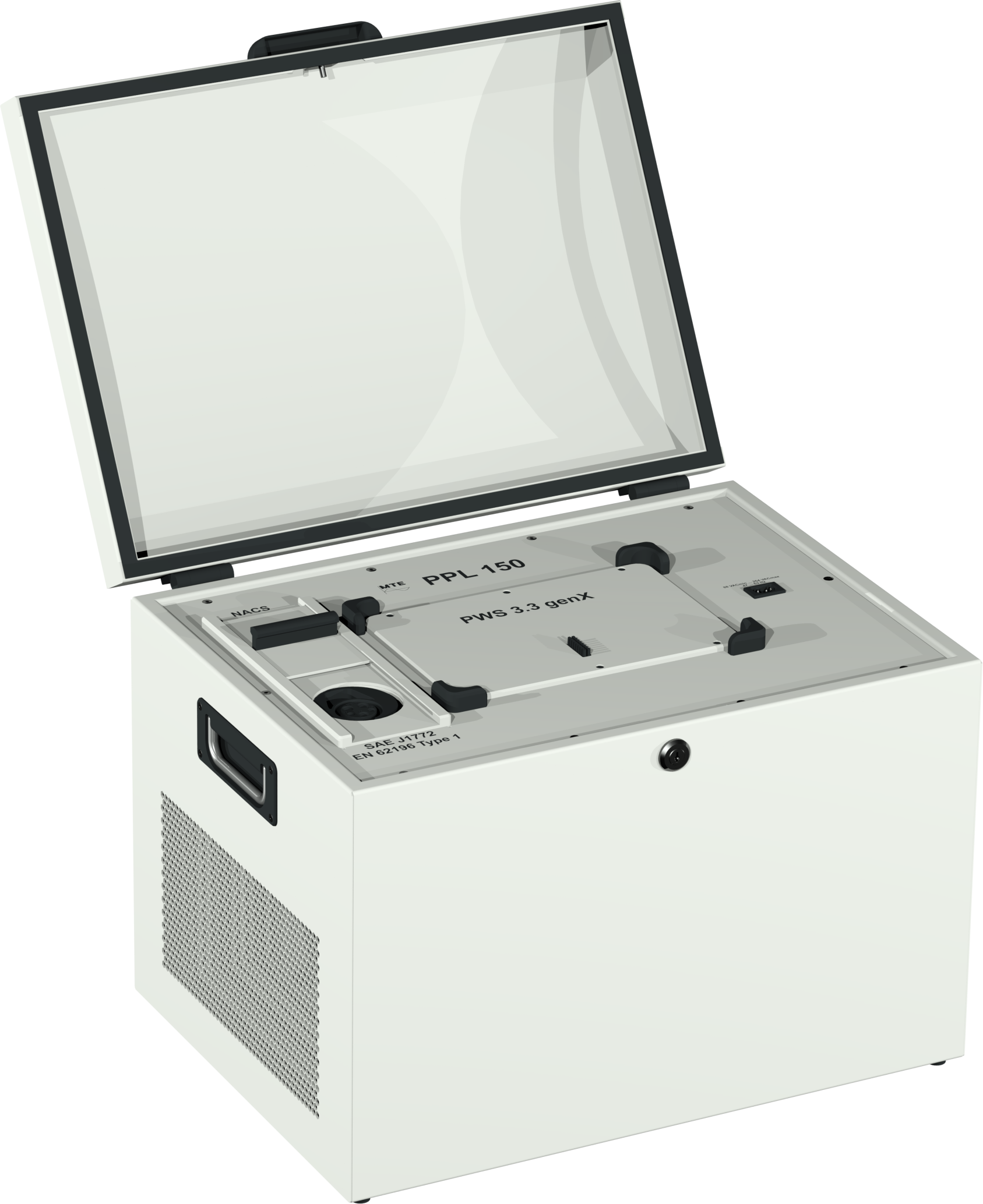

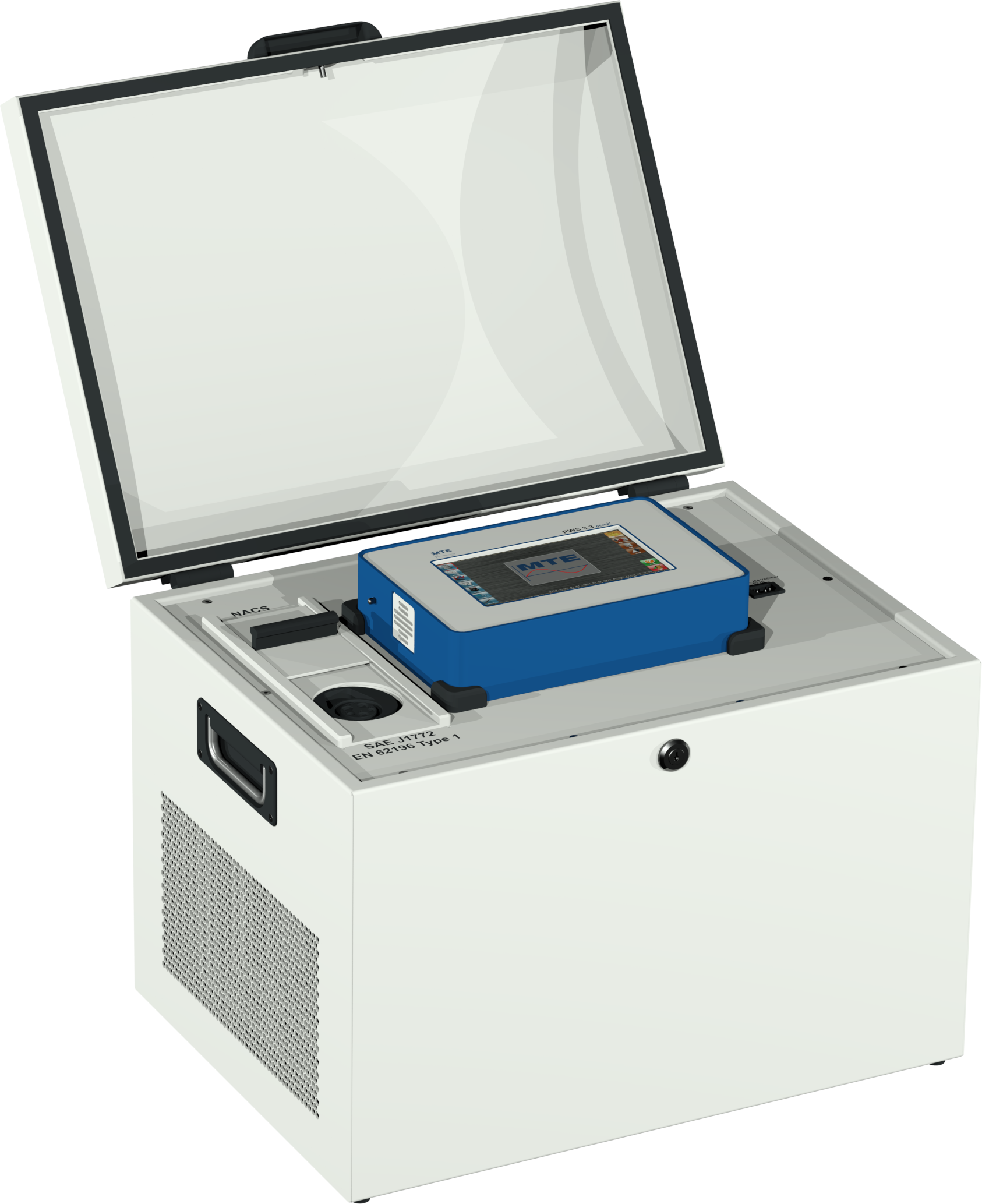

The new programmable dissipative Portable Power Load AC PPL 150 in combination with the on top mounted Portable Working Standard PWS 3.3 genX is the ideal tool to perform such a calibration of single phase EVSE AC with NACS or Type 1 (J1772) connector on-site at well-defined load points.

Product Overview
View full details

Technical Details

Auxiliary power supply:

Mains: 88 VACmin … 264 VACmax or Battery (built-in) to supply the cooling ventilator and control circuit and the Portable Working Standard PWS 3.3 genX in case of no mains.
Housing:

Alu case
Dimensions:

L 22.05 x W 16.9 x H 19.4 inch
Weight:

57.3 lbs
Operation temperature:

-10 °C ... +50 °C
Storage temperature:

-20 °C ... +60 °C
Relative humidity:

≤ 85 % at Ta ≤ 21 °C
≤ 95 % at Ta ≤ 25 °C, 30 days / year spread
Connector for EVSE AC:

EV inlet selectable with slider: NACS North American Charing Standard (SAE J4300) or Type 1 (J1772) (IEC 62196 / SAE 1772)
Control interface:

Module connector for mounting a Portable Working Standard PWS 3.3 genX on top, used to control the PPL 150 and to exactly measure the energy transferred from the EVSE AC to the load.
