PTS 3.3 genX

PTS 3.3 genX

$0.00
$0.00
Sale Sold out

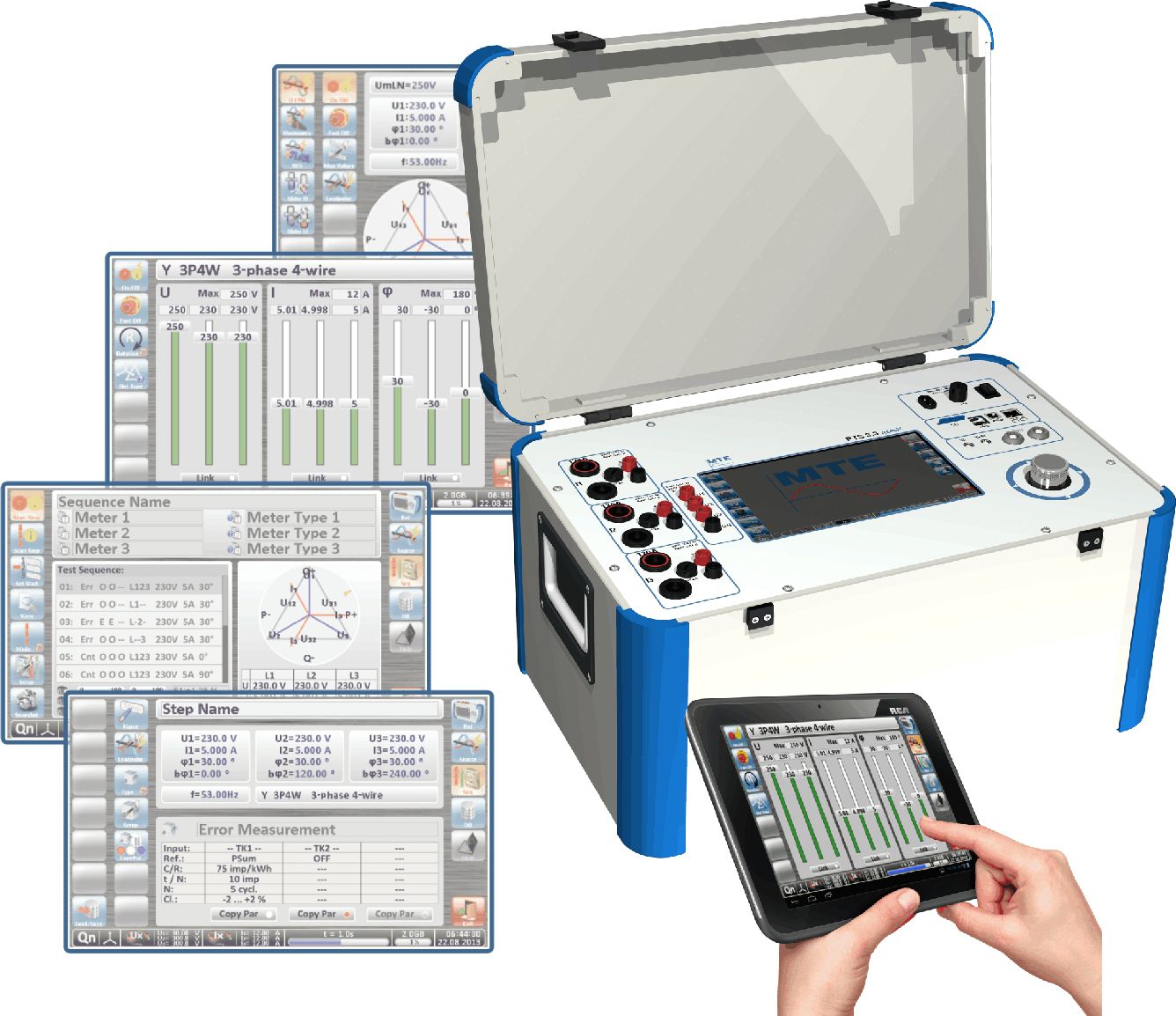

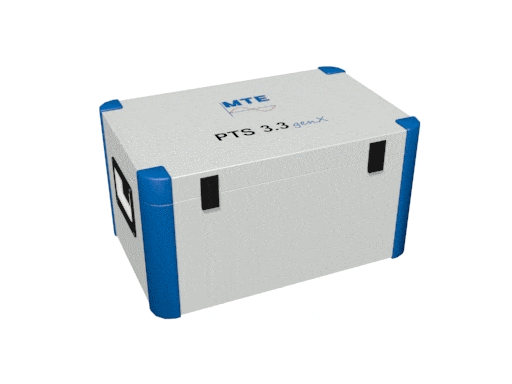

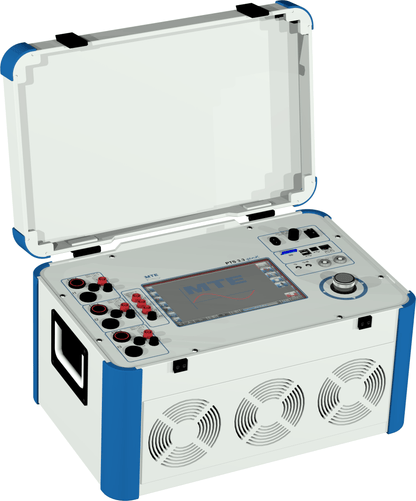

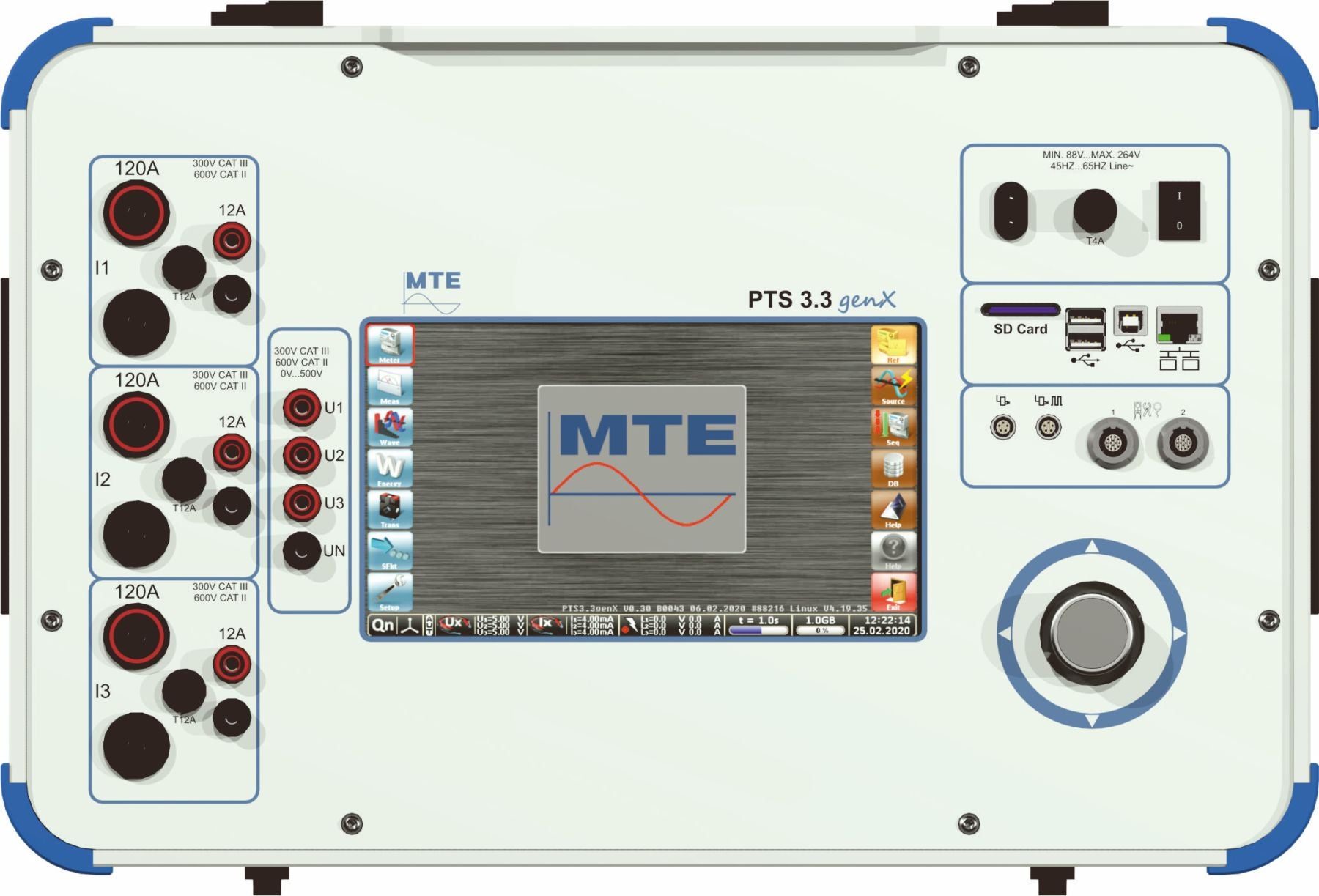

The PTS 3.3 genX portable test system consists of an integrated three-phase current and voltage source unit and a three-phase electronic reference standard of accuracy class 0.05. Characteristic features of the PTS 3.3 genX are its wide measuring range, high accuracy and high tolerance to unwanted external influences.

Product Overview
View full details

Technical Details

Auxiliary power supply:

88 VACmin to 264 VACmax / 47 to 63 Hz

Protection: Switch off supply at > 276 VAC
Power consumption:

max. 500 VA
Housing:

Hard Plastic
Dimensions:

18.50” (wide), 12.60” (high), 9.96” (deep)
Weight:

approx. 50.71 lbs
Operation temperature:

-10°C (14°F) to +50°C (122°F)
Storage temperature:

-20°C (-4°F) to +60°C (140°F)
Relative humidity:

≤85% at Ta ≤21°C (69.8°F)

≤95% at Ta ≤25°C (77°F), 30 days / year spread
