PWS 2.3 genX

PWS 2.3 genX

$0.00
$0.00
Sale Sold out

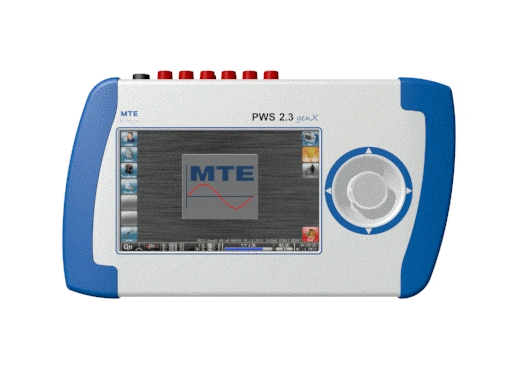

The PWS 2.3 genX Portable Working Standard is a three-phase portable electronic meter test unit of accuracy class 0.1, used for testing single and three-phase electricity meters on site. The PWS 2.3 genX allows checking of all meter installation parameters and associated circuits.

Product Overview
View full details

Technical Details

Auxiliary power supply:

Power may be taken from the auxiliary supply or the measuring circuit at:
46 VACmin to 300 VACmax, 47 Hz to 63 Hz
65 VDCmin to 423 VDCmax
Protection: up to 440 VACmax
Power consumption:

max. 15W / 30 VA
Housing:

Hard Plastic
Dimensions:

12.13” (wide), 6.81” (high), 2.76” (deep)
Weight:

approx. 3.31 lbs
Operation temperature:

-10 °C (14 °F) to +50 °C (122 °F)
Storage temperature:

20 °C (68 °F) to +60 °C (140 °F)
Relative humidity:

≤85% at Ta ≤21 °C (69.8 °F)

≤95% at Ta ≤25 °C (77 °F), 30 days / year spread
External 12 V DC supply:

10 VDCmin to 14.4 VDCmax
Frequency range:

47 Hz to 63 Hz
