SPE 120.3 / 120 A

SPE 120.3 / 120 A

$0.00
$0.00
Sale Sold out

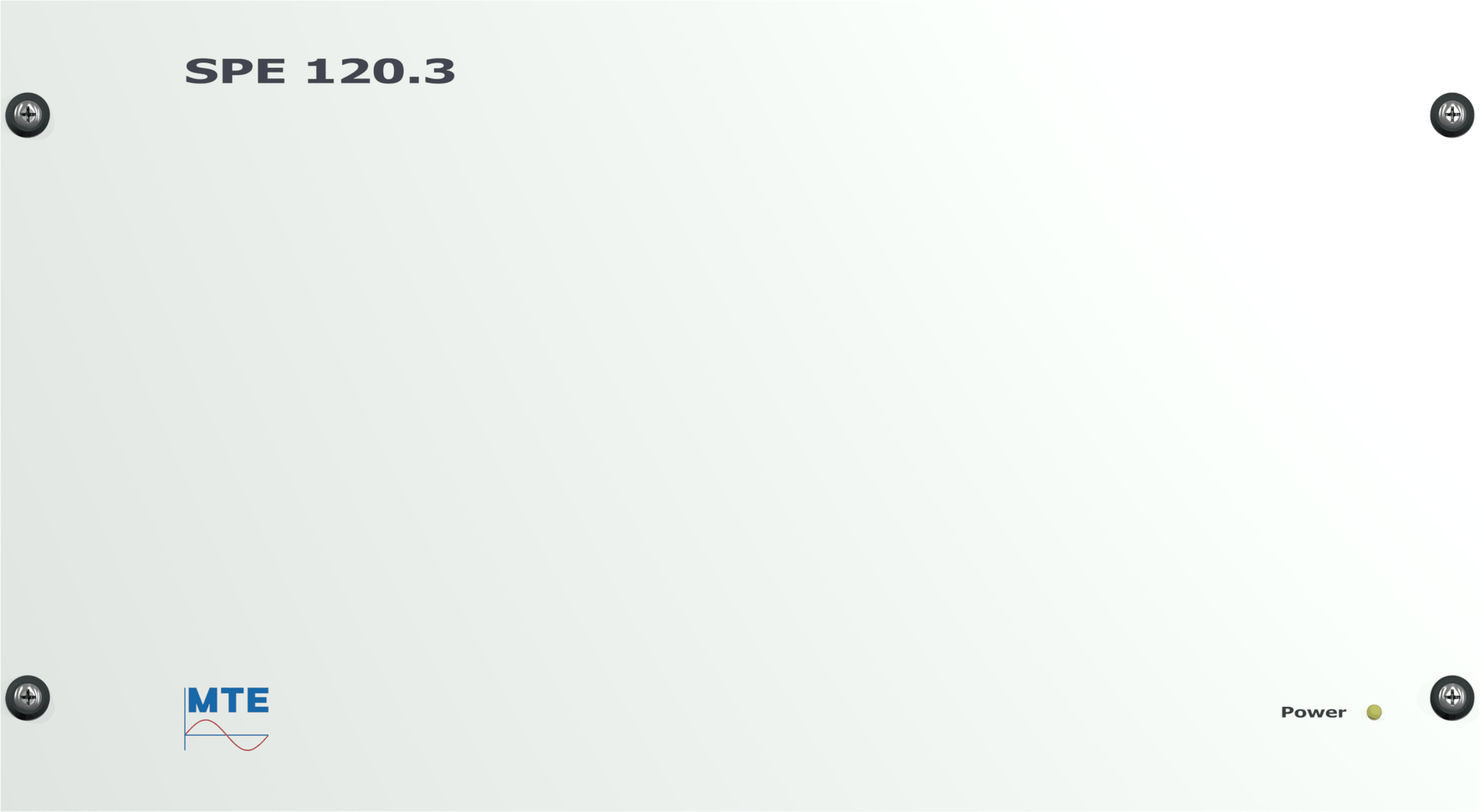

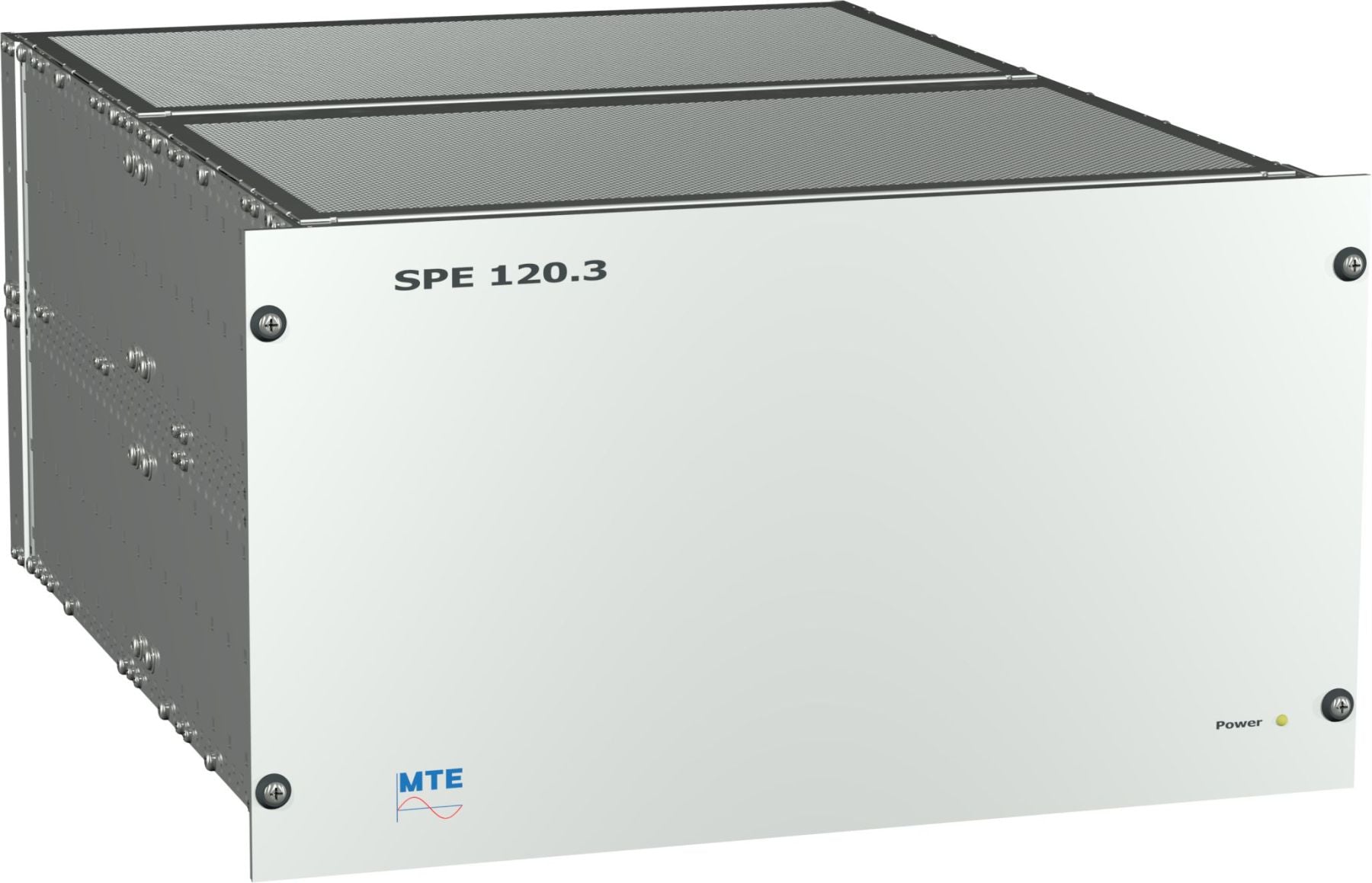

The SPE 120.3 is a three-phase computer controlled voltage and current source, designed for use in meter test systems and in the laboratory. It is in two performance steps with 300 VA and 600 VA output power available. The models are housed within a 19”-plug-in unit, 6 or 9 height modules, depending on output power.

Product Overview
View full details

Technical Details

Auxiliary power supply:

3x230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption:

2.2 kW (3.5 kVA)
Housing:

19”-Plug-in unit
Dimensions:

19.09” (wide), 10.63” (high), 23.62” (deep)
Weight:

approx: 110.23 lbs
Voltage source:

Phase - Neutral / 30 to 300 V
Current source:

1mA to 120A
